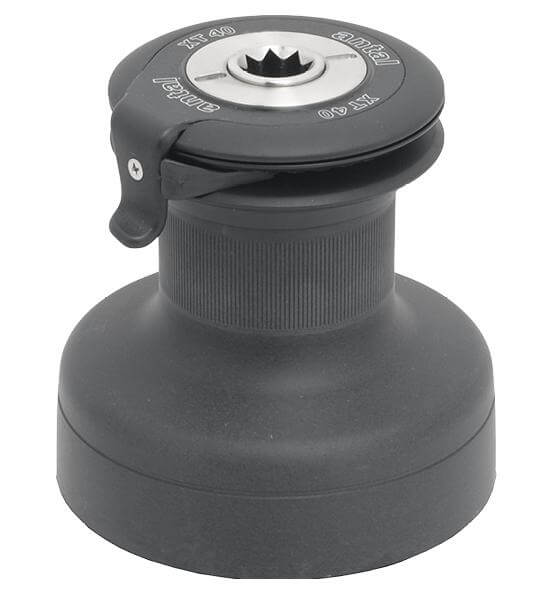

Specifications for Antal 40 2-Gang Self-Tailing Aluminium-Winsch
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 12 |
| Empfohlener min. Leinendurchmesser (mm) | 6 |
| Boat | |
| Style | Self-Tailing |
| Dimensions | |
| Basis Ø (mm) | 153 |
| Trommel Ø (mm) | 80 |
| Höhe (mm) | 157 |
| Größe | 40 |
| Winches | |
| Getriebuntersetzung 1. Gang (X : 1) | 2 |
| Getriebuntersetzung 2. Gang (X : 1) | 6,4 |
| Gänge (manuell) | 2-Gang |
| Line recovery per rotation - 1st gear (mm) | 125 |
| Line recovery per rotation - 2nd gear (mm) | 40 |
| Kraftuntersetzung 1. Gang (X : 1) | 12,8 |
| Kraftuntersetzung 2. Gang (X : 1) | 40 |
| Material | |
| Material | Aluminium |
| Weight | |
| Gewicht (g) | 4400 |
| Garantie (Jahren) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT40 AL (Exploded view).pdf
Exploded View of Antal Winch XT40_AL
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT40_635809481349148976.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
