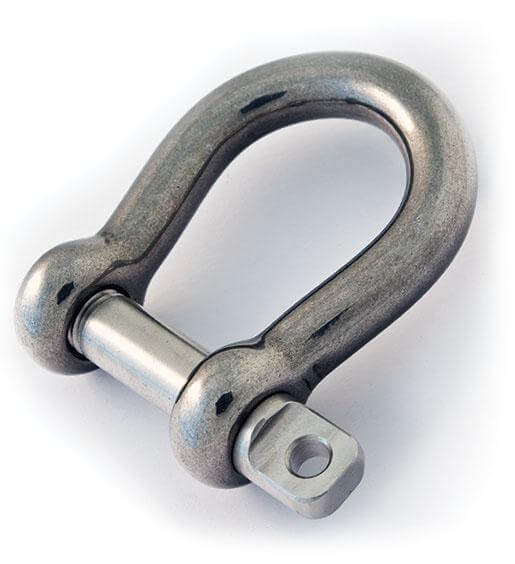

Specifications for Petersen 5mm Bow Shackle
| Boat | |
|---|---|
| Load | |
| Charge de rupture (kg) | 1200 |
| Dimensions | |
| B (mm) | 5 |
| J (mm) | 10 |
| L (mm) | 22 |
| P (mm) | 5 |
| W (mm) | 16 |
| Ø axe (mm) | 5 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Weight | |
| Poids (g) | 14 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Petersen shackles are produced from 316L grade stainless steel; using electrical upset forging technique, to ensure that the grain flows around the shackle head to give maximum strength. This gives the Petersen shackles a high corrosion resistance and excellent fatigue strength.
The standard screw pin is the most common pin used in stainless steel shackles.
