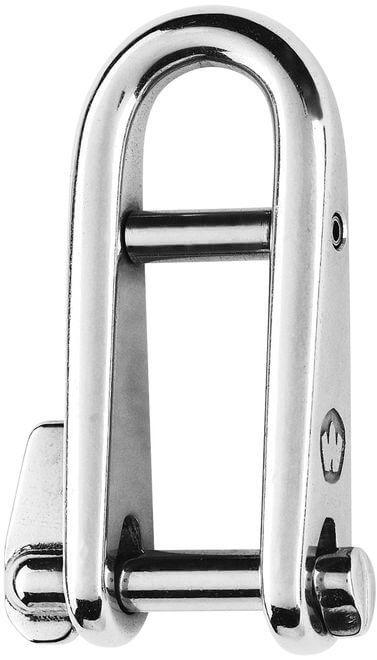

Specifications for Wichard Key pin shackle with bar - Dia 8 mm
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 800 |
| Charge de rupture (kg) | 2500 |
| Dimensions | |
| A (mm) | 59 |
| B (mm) | 21 |
| C (mm) | 8 |
| D (mm) | 17 |
| E (mm) | 6 |
| F (mm) | 79 |
| G (mm) | 49 |
| Ø axe (mm) | 8 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Weight | |
| Poids (g) | 123 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Key pin shackle forged in grade 316L stainless steel
Opening and closing is done simply by rotating the pin half a turn
No risk to lose the pin as it remains attached
Outstanding working and breaking loads
Applications
Perfect product for halyards or applications requiring to open /close the shackle often
