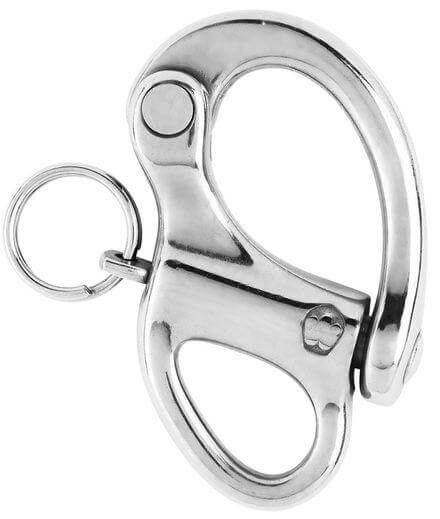

Specifications for Wichard Snap shackle - With fixed eye - Length: 35 mm
| Boat | |
|---|---|
| Style | Fixed Bail |
| Load | |
| Charge de travail (kg) | 160 |
| Charge de rupture (kg) | 400 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 6 |
| Longueur totale (mm) | 35 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 316L |
| Weight | |
| Poids (g) | 12 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Forged 316 stainless steel snap shackle with fixed eye. The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
