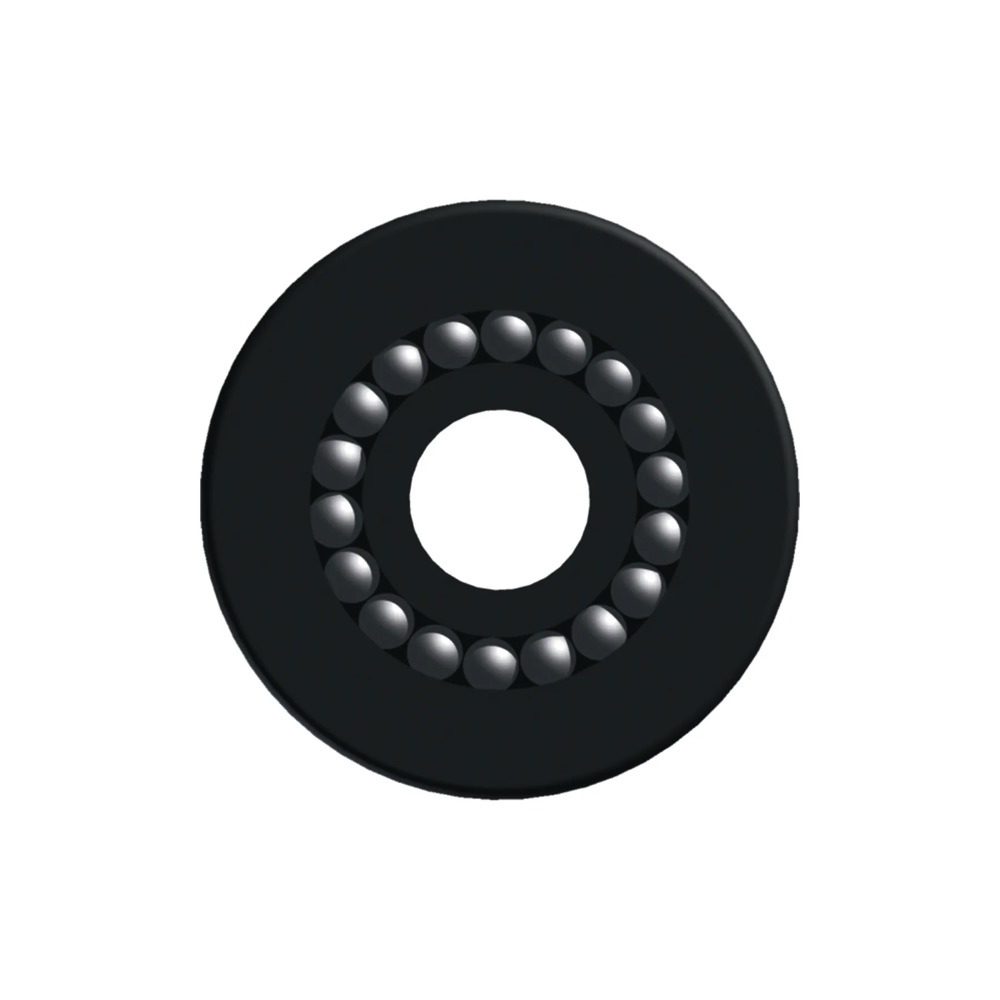

Antal Mekton Sheave for Mini Blocks 45 mm
A genuine Antal replacement sheave for the Stainless Mini Blocks range. The 45 mm Mekton (fibre-reinforced resin) sheave runs on side Delrin® ball bearings for low friction in compact layouts. It’s a quick, lightweight refresh for vang cascades, traveller controls and other small-line systems where smooth running and reliability matter.
Why it’s a smart upgrade
-
Low friction in a tiny footprint thanks to side Delrin® ball bearings
-
Light, tough Mekton resin sheave for dependable performance afloat
-
Drop-in swap for Antal Mini Blocks to restore like-new efficiency
Key specifications
-
Sheave Ø: 45 mm
-
Max rope Ø: 8 mm
-
Safe Working Load (SWL): 500 kg
-
Thickness (T): 12 mm
-
Axle/bore Ø (D3): 8 mm
-
Hub Ø (D2): 12 mm
-
Sheave material: Mekton (resin)
-
Side bearing: Delrin® balls
Typical applications
-
Traveller, vang and cunningham cascades on dinghies and small keelboats
-
Mast-base and deck organisers for 6–8 mm control lines
-
Refurbishing Antal Stainless Mini Blocks where the sheave is worn
Fit & compatibility notes
-
Confirm your block’s sheave Ø (45 mm), axle/bore Ø (8 mm) and thickness (12 mm) before ordering
-
Designed for rope up to 8 mm; do not use with wire or rod
