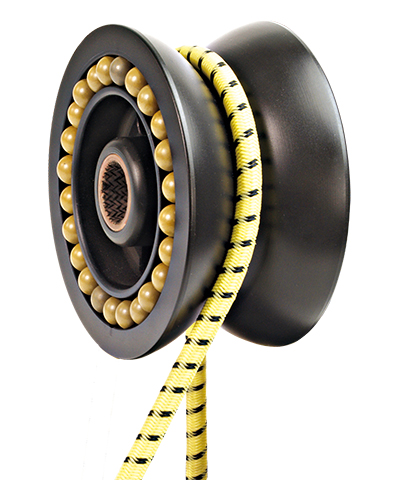

Antal Tulip Sheave 90 mm, Aluminium, 5.8 t
A genuine Antal replacement tulip sheave for wide lead angles with minimal footprint. The 90 mm aluminium wheel uses self-captive Torlon® side balls for side loads and a composite axial/radial bearing for smooth, low-friction running—ideal for compact organisers and cross-deck leads where a revolving block won’t fit. This is the higher-capacity 5.8 t version.
Why it’s a smart upgrade
-
Manages acute lead angles while keeping decks tidy and low-profile
-
Ultra-low friction from Torlon® side balls plus composite axial/radial bearing
-
Hard-anodised, Teflon-coated aluminium for long service life
Key specifications
-
Sheave Ø: 90 mm
-
Max rope Ø: 14 mm
-
Safe Working Load (SWL): 5,800 kg
-
Thickness (T): 38 mm
-
Hub Ø (D2): 30 mm
-
Side bearing: Torlon® balls (self-captive)
-
Axial/radial bearing: Composite fibre
-
Sheave material: Aluminium
Typical applications
-
Tulip organisers, cross-deck and pit leads
-
Compact turning points where a standard revolving block adds too much bulk
Fit & compatibility notes
-
Confirm your installation’s sheave Ø (90 mm), hub Ø (30 mm) and thickness (38 mm) before ordering
-
Designed for rope up to 14 mm; not suitable for wire or rod
-
Looking for the lighter-duty option? See Antal Tulip Sheave 90 mm, Aluminium, 5 t.
