Specifications for Antal V Grip Clutch 10 Triple
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Type | Triple |
| Load | |
| SWL (kg) | 1000 |
| Blocks | |

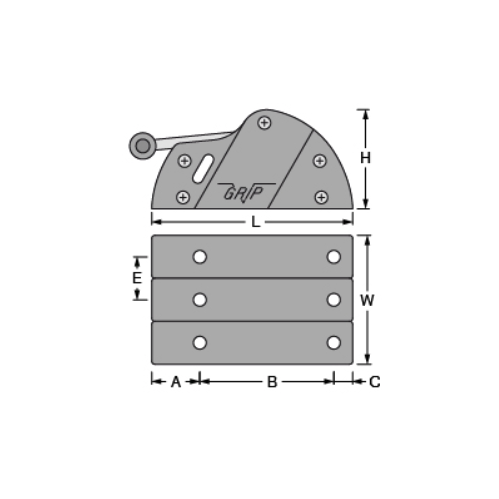

| Dimensions | |
| A (mm) | 30 |
| B (mm) | 87 |
| C (mm) | 15 |
| E (mm) | 34 |
| Fixing hole Ø (mm) | 6 |
| Height (mm) | 68 |
| Length (mm) | 132 |
| Width (mm) | 101 |
| Compatibility | |
| Weight | |
| Weight (g) | 1450 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Antal V Grip Clutch 10 Triple is a valuable asset for controlling three 10mm diameter control lines simultaneously on high-performance sailboats.
