Specifications for Antal V Grip Clutch 12 Double
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 10 |
| Boat | |
| Type | Double |
| Load | |
| SWL (kg) | 1300 |
| Blocks | |

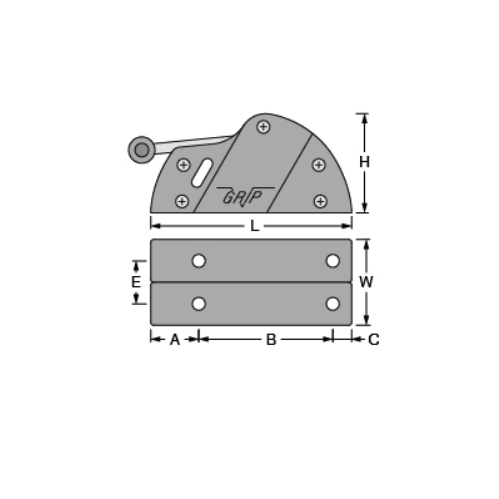

| Dimensions | |
| A (mm) | 30 |
| B (mm) | 87 |
| C (mm) | 15 |
| E (mm) | 34 |
| Fixing hole Ø (mm) | 8 |
| Height (mm) | 68 |
| Length (mm) | 132 |
| Width (mm) | 67 |
| Compatibility | |
| Weight | |
| Weight (g) | 1100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

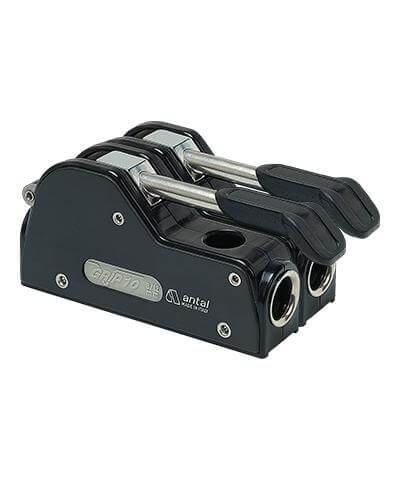

The Antal V Grip Clutch 12 Double is a valuable asset for controlling two 12mm diameter control lines simultaneously on sailboats. The V-Grip system offers a strong grip and protects the lines, while the double clutch design and compact size make it a practical choice for various control line applications, particularly for sailboats with control line pairs that require synchronized handling.
