Specifications for Bamar RLG EVO 8 furler - swivel
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 2000 |
| Dimensions | |
| A (mm) | 8 |
| B (mm) | 13 |
| C (mm) | 78 |
| D (mm) | 45 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Total length (mm) | 78 |
| Weight | |
| Weight (g) | 270 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

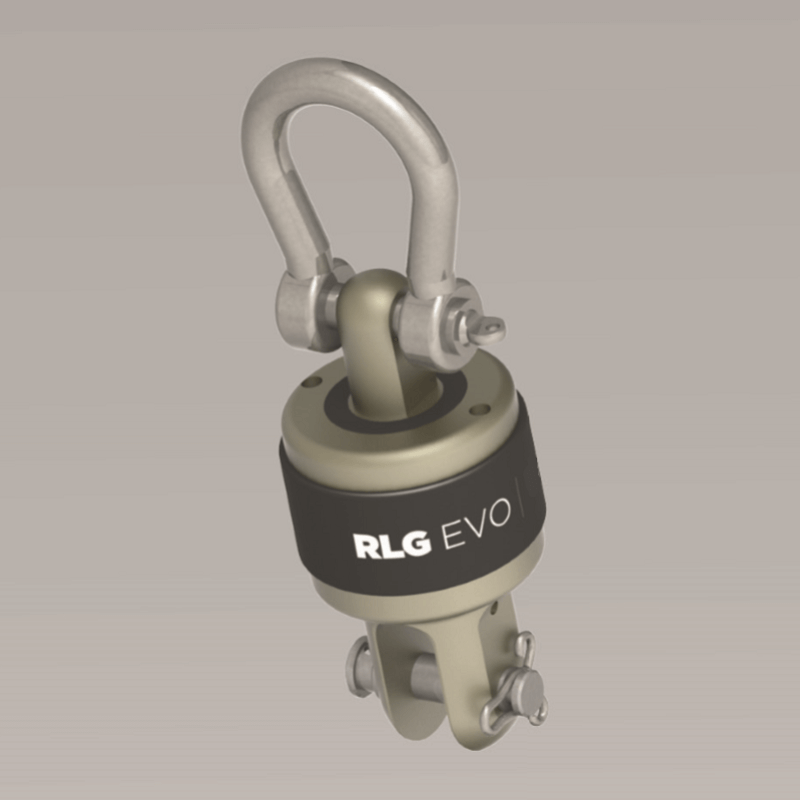

The Bamar RLG EVO Swivels are made out of ergal aluminium alloy and 17-4PH stainless steel, thereby guaranteeing high strength, hardness and corrosion resistance. The swivels are designed with quick release pins for fast removal of the stay from the swivel. The RLG EVO Swivel is supplied including a HR shackle.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 2000 |
| Dimensions | |
|---|---|
| A (mm) | 8 |
| B (mm) | 13 |
| C (mm) | 78 |
| D (mm) | 45 |
| Jaw pin Ø (mm) | 8 |
| Jaw width (mm) | 13 |
| Total length (mm) | 78 |
| Weight | |
|---|---|
| Weight (g) | 270 |
