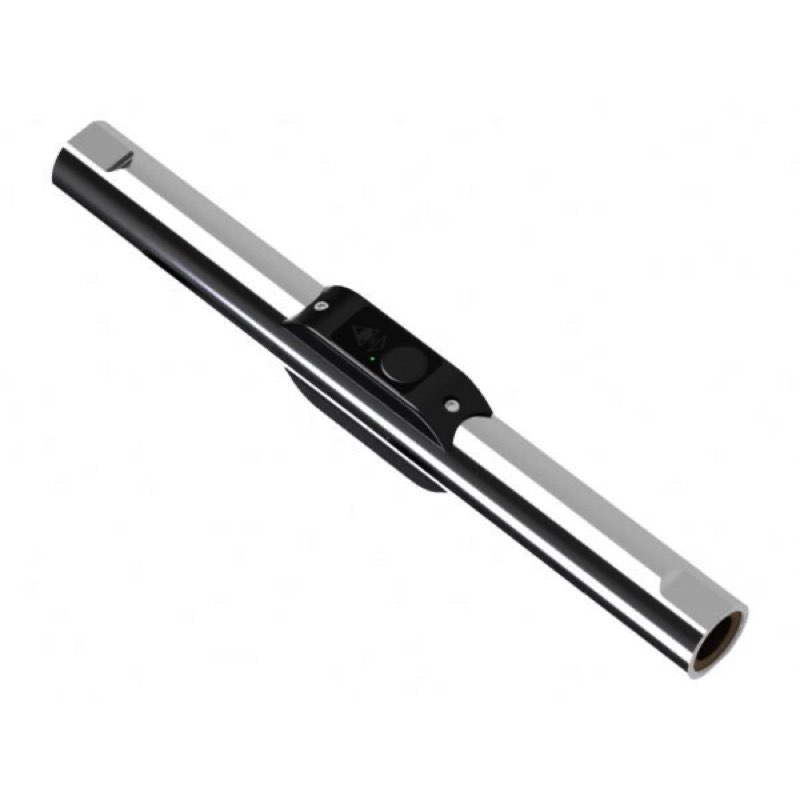

Cyclops Marine smarttune² 1" – Wireless Load Sensor
The Cyclops Marine smarttune² 1" is an innovative wireless load sensor, designed to replace standard turnbuckles and provide real-time rigging load data with ±1% accuracy. Engineered for large keelboats, racing yachts, and performance cruisers, it allows sailors to optimise their rigging for maximum speed, repeatability, and safety. With seamless wireless connectivity, easy installation, and a rugged, marine-grade construction, smarttune² 1" is an essential upgrade for serious sailors looking to gain a competitive edge.
Key Features & Benefits
✅ Accurate Rig Load Monitoring – Delivers ±1% accuracy of the Maximum Working Load (MWL), ensuring reliable data for precise rig adjustments.

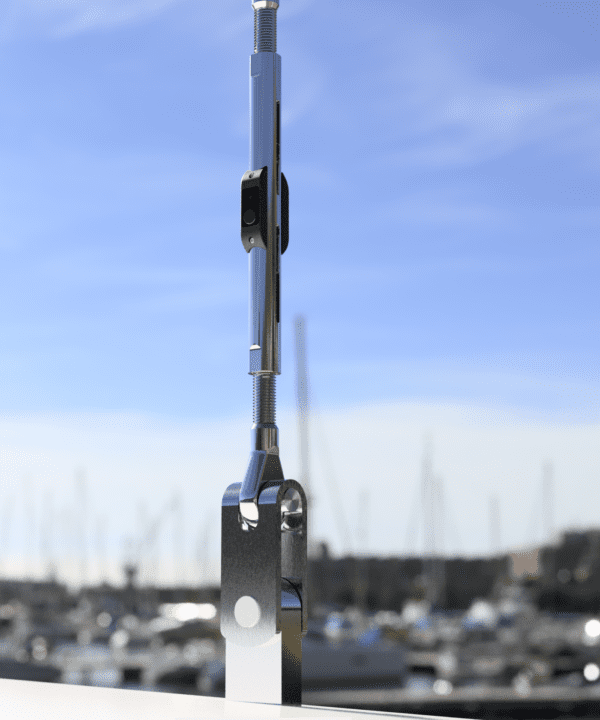

✅ Simple Retro-Fit Installation – Easily replaces an existing turnbuckle—simply unscrew the old fitting and install smarttune² without complex modifications.

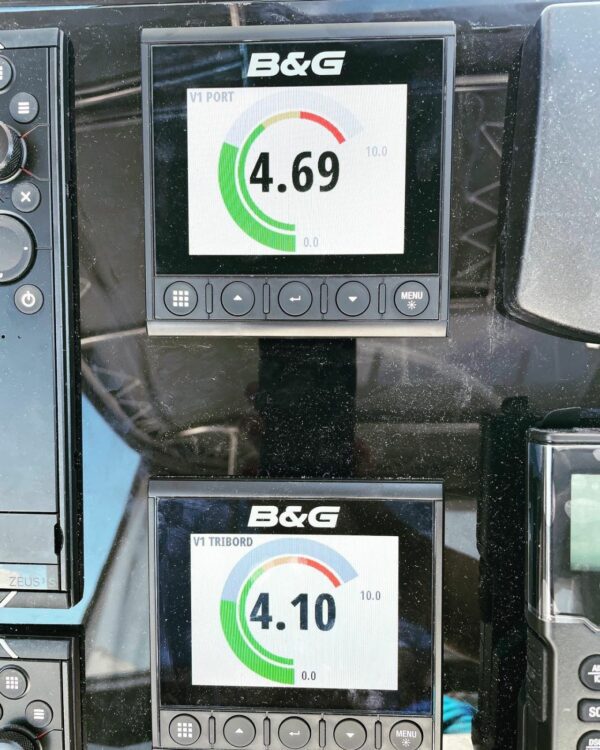

✅ Wireless Connectivity – Pairs effortlessly with the Cyclops Marine app via Bluetooth or integrates with marine electronics via the Cyclops Marine Gateway, providing live data streaming and logging.
✅ Extended Battery Life – Offers up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring long-term reliability.
✅ Wireless Charging – Conveniently charges using a Cyclops wireless charging pad, with LED indicators showing charge status.
✅ Built for Harsh Conditions – Features an IP68-rated waterproof housing, ensuring durability in the marine environment.
✅ Customisable Frequency – Factory-set at 1Hz, with the option for custom frequency settings upon request.
Technical Specifications
- Calibrated Load: 12 tonnes
- Dimensions: 400 x 68 x 40 mm
- Material: 316L stainless steel body, brass-threaded inserts
- Accuracy: ±1% of MWL between 0-40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smarttune² 1" Fits into Your Sailing Setup
The smarttune² 1" is ideal for large yachts and performance raceboats, making it perfect for applications such as:
✔ Forestays and backstays – Monitor rig tension for maximum sail efficiency.
✔ Sidestays/shrouds – Fine-tune settings for repeatable rigging adjustments.
✔ Performance tuning – Track and replicate optimal load settings for racing consistency.
Safety and Reliability
- Overload Protection: Never exceed 150% of the calibrated load, as this may cause permanent damage requiring recalibration.
- Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.
Optimise Your Sailing Performance
The Cyclops Marine smarttune² 1" transforms rig tuning with real-time, wireless load intelligence, making it an essential tool for professional racers and serious sailors. Whether optimising sail shape or ensuring safe rig tension, this precision-engineered sensor provides the data needed to push performance further.
Upgrade your rigging today and take control with real-time load intelligence.
Specifications
| Electrics | |
|---|---|
| Accuracy | +/-1% |
| Battery life | 120 Days |
| Water resistance | IP68 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 12000 |
| NBL (kg) | 22000 |
| Dimensions | |
|---|---|
| Height (mm) | 40 |
| Length (mm) | 400 |
| Width (mm) | 68 |
| Undefined |
|---|
| Weight | |
|---|---|
| Weight (g) | 1900 |
