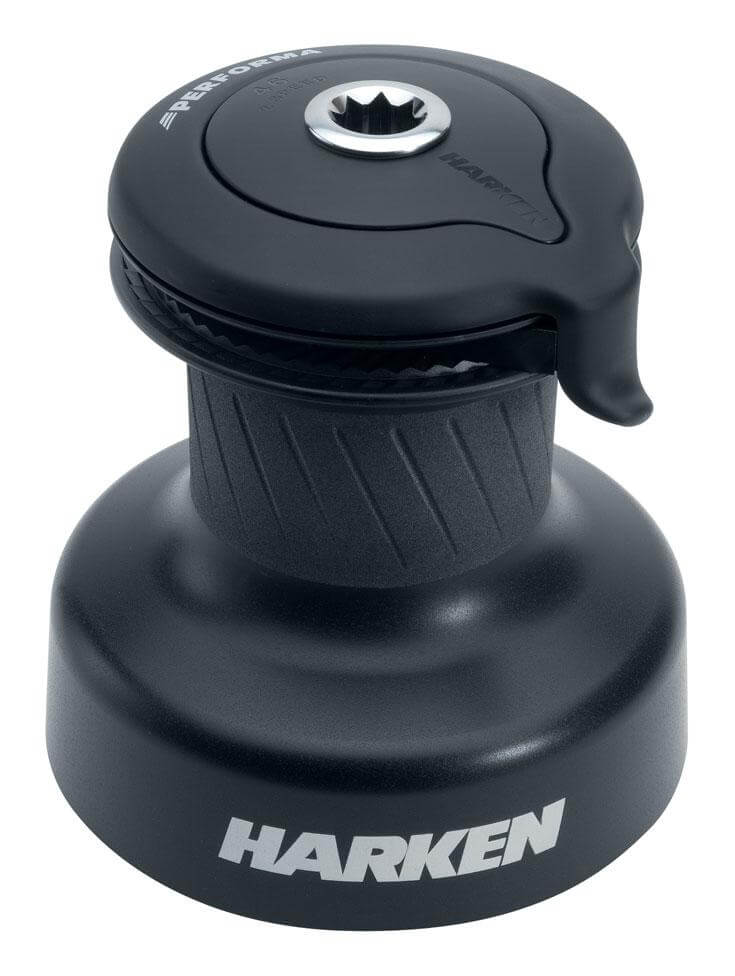

Specifications for Harken 46 2-Speed S/T Performa™ Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 1300 |
| Dimensions | |
| A (mm) | 100 |
| B (mm) | 184 |
| C (mm) | 202 |
| D (mm) | 90 |
| Base Ø (mm) | 184 |
| Drum Ø (mm) | 100 |
| Height (mm) | 202 |
| Line entry height (mm) | 90 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Gears (Manual) | 2-Speed |
| Power ratio 1 (X : 1) | 11.7 |
| Power ratio 2 (X : 1) | 46.5 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 46 |
| Weight | |
| Weight (g) | 5200 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 1300 |
| Dimensions | |
|---|---|
| A (mm) | 100 |
| B (mm) | 184 |
| C (mm) | 202 |
| D (mm) | 90 |
| Base Ø (mm) | 184 |
| Drum Ø (mm) | 100 |
| Height (mm) | 202 |
| Line entry height (mm) | 90 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 2.3 |
| Gear ratio 2 (X : 1) | 9.17 |
| Gears (Manual) | 2-Speed |
| Power ratio 1 (X : 1) | 11.7 |
| Power ratio 2 (X : 1) | 46.5 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Size | 46 |
| Weight | |
|---|---|
| Weight (g) | 5200 |
