KA-KBRA105-SN_Karver Drawing Snatch Block_001.PDF

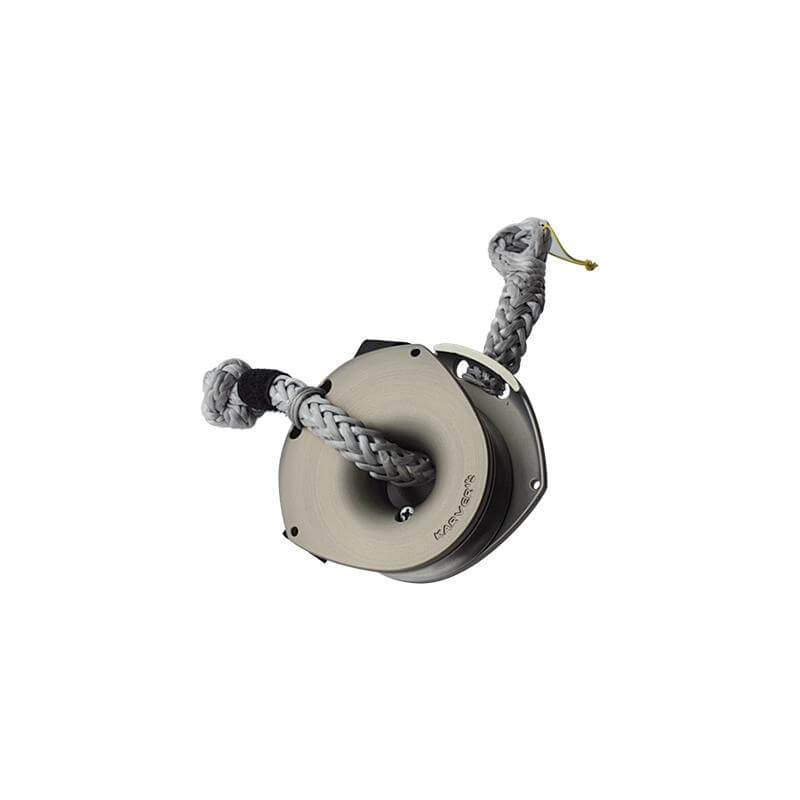

Karver KBR105 High Load Snatch Block Technical Drawing
|
|
|
|
KA-KBR_Karver Drawing Block Materials Properties_001.PDF
Karver KBR Block Materials Diagram
|
|
|
|
KA-KBRA105-SN_Karver 2D Drawing Snatch Block_001.DWG
Karver KBRA105 2D Snatch Block Technical Drawing
|
|
|
|
KA-KBRA105-SN_Karver 3D Drawing Snatch Block_001.IGS
Karver KBRA105 3D Snatch Block Technical Drawing
|

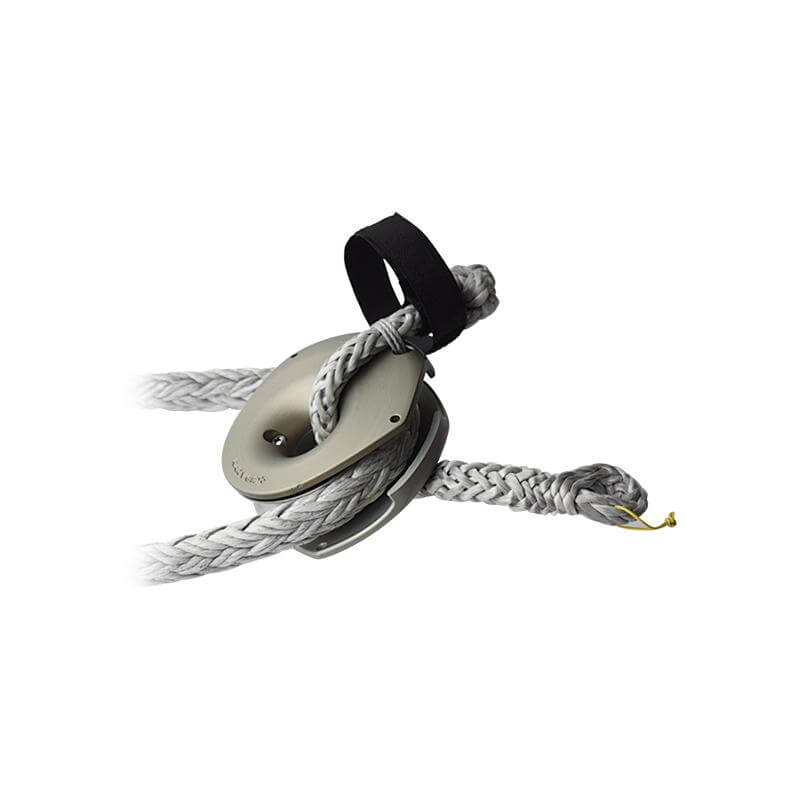

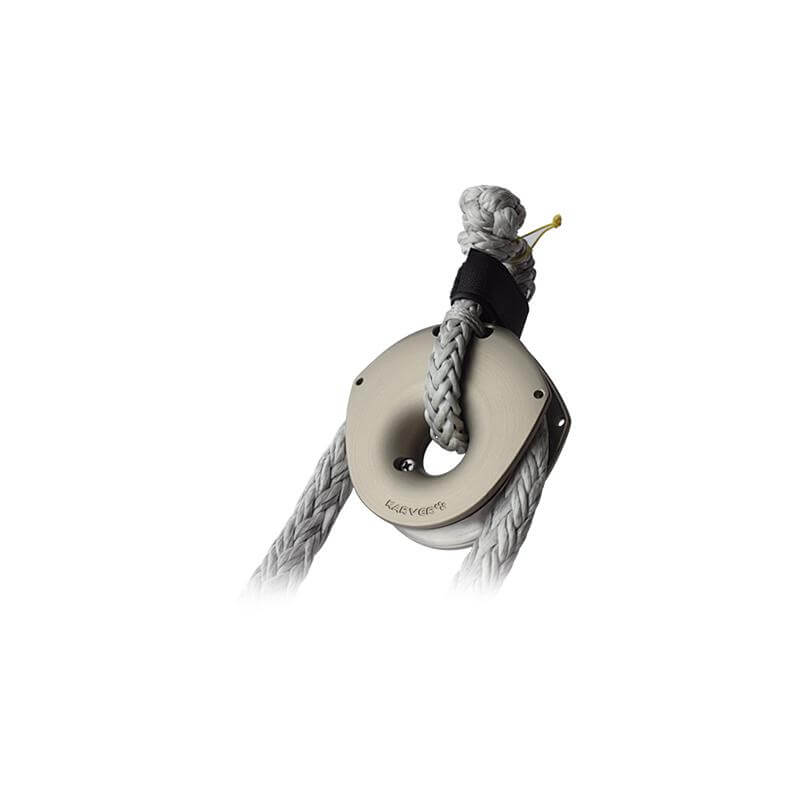

The Karver KBR High load snatch blocks have aluminium side plates and titanium/ceramic bearings. They come supplied with a quick release rope shackle with a velco strap for secure closure. To open, undo the rope shackle and pivot the side cheeks around the centre to open the block, insert or remove the running line and then rotate the cheeks back to the closed position and secure the rope shackle.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 18 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 10500 |
| NBL (kg) | 21000 |
| Blocks | |
|---|---|
| Bearing type | - |
| Ratchet | No |
| Dimensions | |
|---|---|
| Inside Ø (mm) | 36 |
| Sheave Ø (mm) | 102 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 668 |
