Specifications for Lewmar 68 2-Speed Self-Tailing Alloy Grey Ocean Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 20 |
| Recommended line - Min Ø (mm) | 10 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 6614 |
| Dimensions | |
| B (mm) | 282 |
| D (mm) | 141 |
| H (mm) | 302 |
| L (mm) | 142 |
| Base Ø (mm) | 282 |
| Drum Ø (mm) | 141 |
| Height (mm) | 302 |
| Line entry height (mm) | 142 |
| Winches | |
| Gear ratio 1 (X : 1) | 5.8 |
| Gear ratio 2 (X : 1) | 18.8 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 164 |
| Line recovery per rotation - 2nd gear (mm) | 50 |
| Power ratio 1 (X : 1) | 20.9 |
| Power ratio 2 (X : 1) | 67.6 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 68 |
| Weight | |
| Weight (g) | 20000 |
| Warranty (yrs) | 3 |

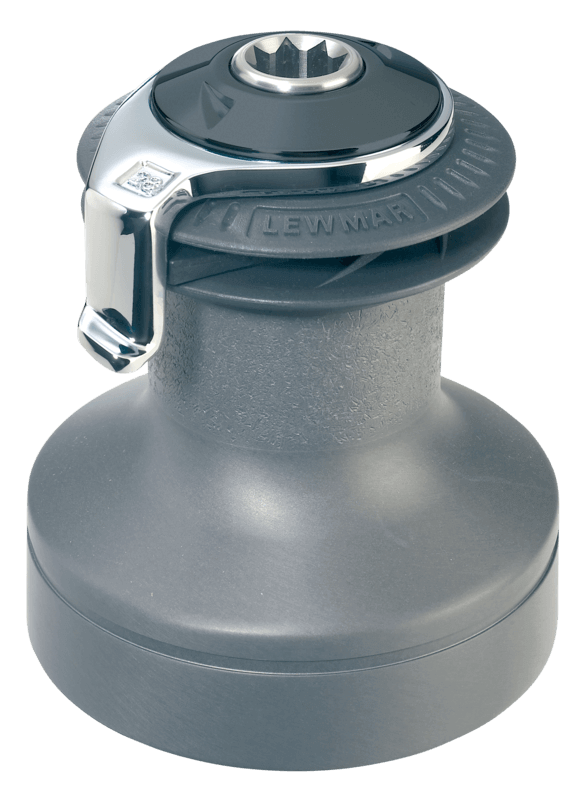

Lewmar's Self-Tailing Ocean Alloy Grey Winch
Lewmar's Ocean winch range is the most popular winch ever made. Its styling still attracts boat builders looking for a classic look, or boat owners looking to upgrade or replace their existing winches.
Features
Easy Servicing - no tools required. Simply unscrew the top cap with your fingers to remove the drum and provide access to the gear train
Choice of two finishes - Ocean winches are available in grey alloy and chrome bronze for the cruising sailor
Manual to Electric - Conversion kits are available from size 40 and above
Available in Size 16 to Size 65
Solid construction respected by boat builders and sailors for generations
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 20 |
| Recommended line - Min Ø (mm) | 10 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 6614 |
| Dimensions | |
|---|---|
| B (mm) | 282 |
| D (mm) | 141 |
| H (mm) | 302 |
| L (mm) | 142 |
| Base Ø (mm) | 282 |
| Drum Ø (mm) | 141 |
| Height (mm) | 302 |
| Line entry height (mm) | 142 |
| Winches | |
|---|---|
| Gear ratio 1 (X : 1) | 5.8 |
| Gear ratio 2 (X : 1) | 18.8 |
| Gears (Manual) | 2-Speed |
| Line recovery per rotation - 1st gear (mm) | 164 |
| Line recovery per rotation - 2nd gear (mm) | 50 |
| Power ratio 1 (X : 1) | 20.9 |
| Power ratio 2 (X : 1) | 67.6 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Size | 68 |
| Weight | |
|---|---|
| Weight (g) | 20000 |
| Warranty (yrs) | 3 |
