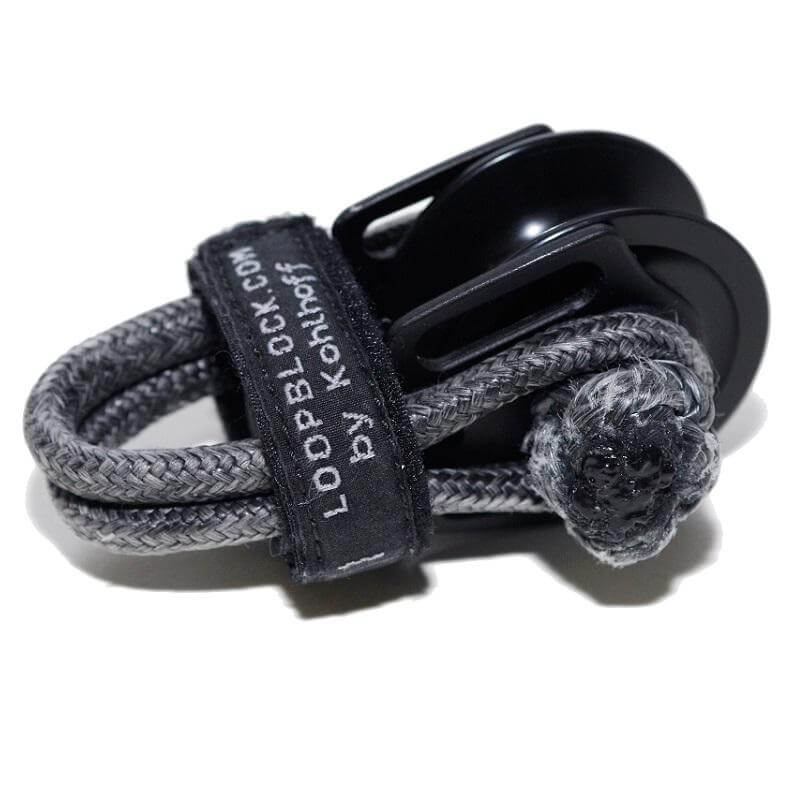

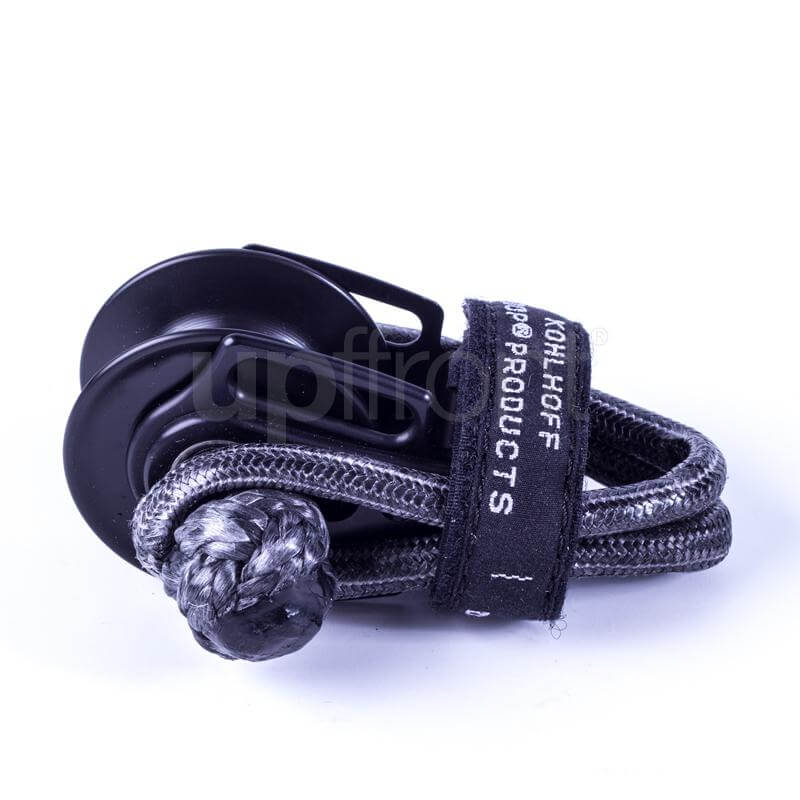

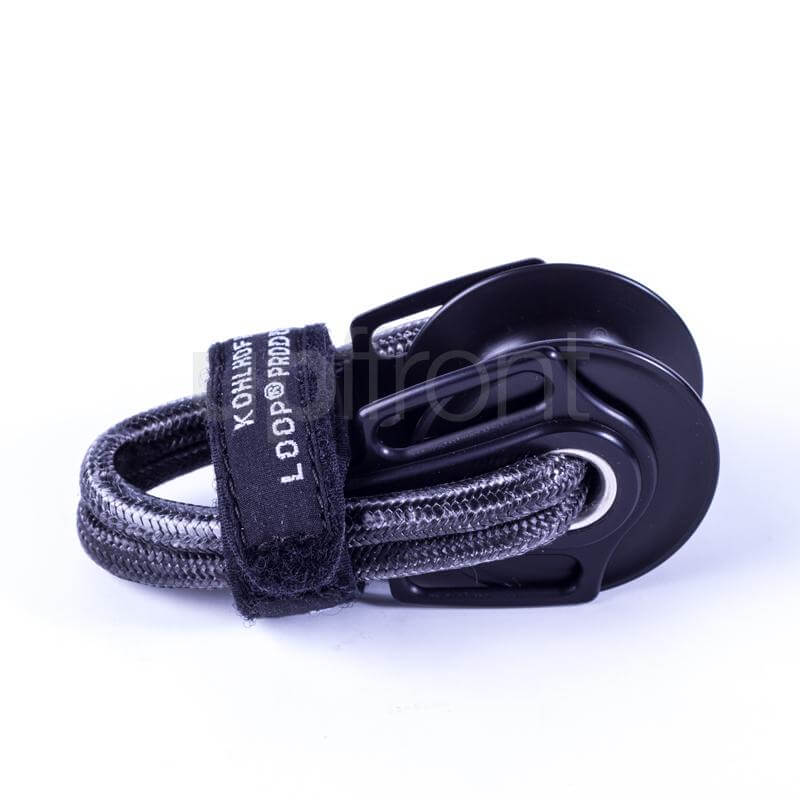

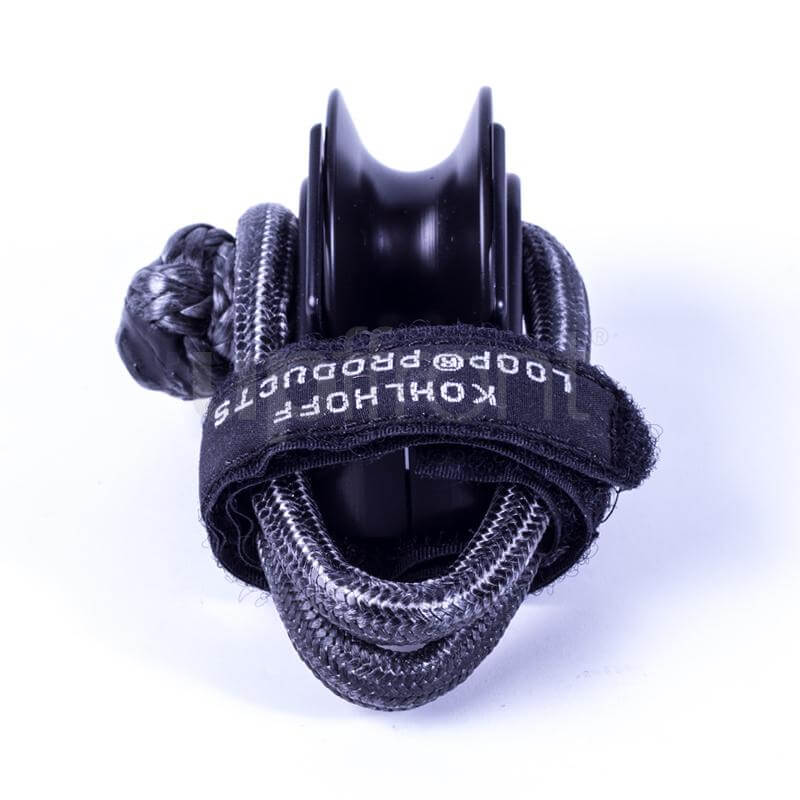

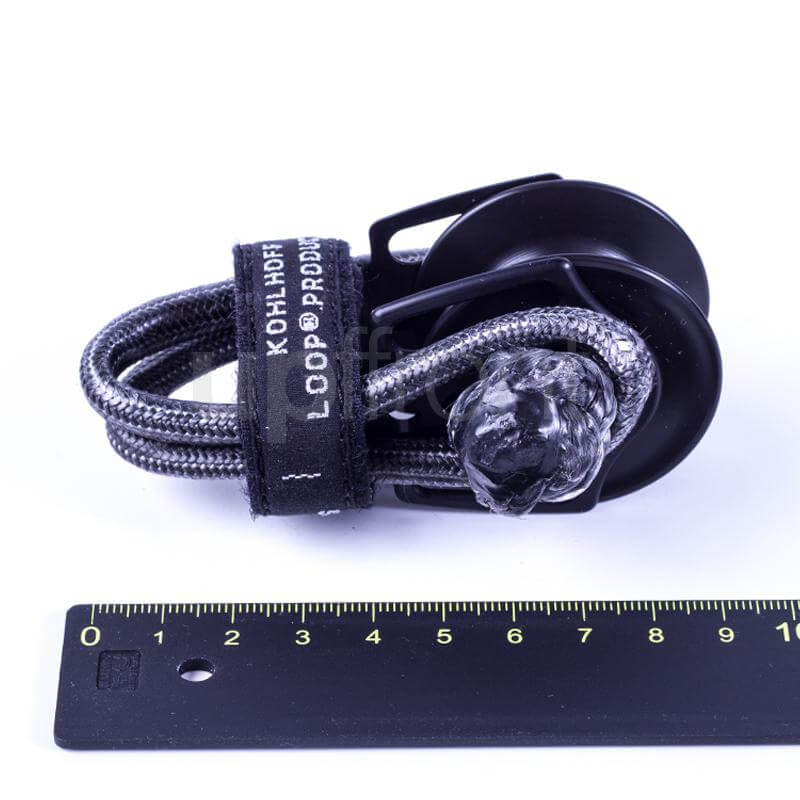

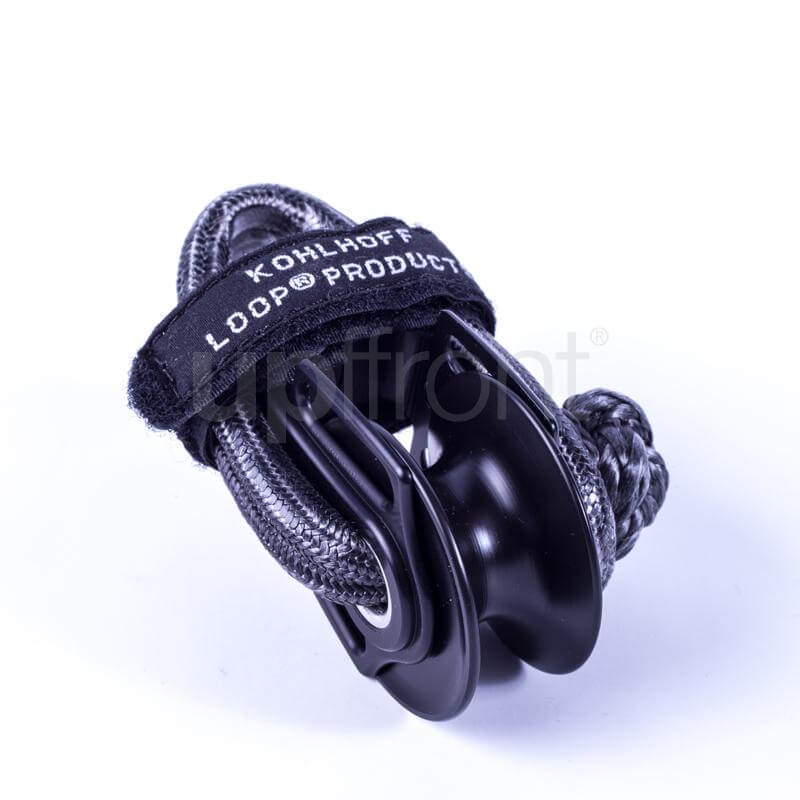

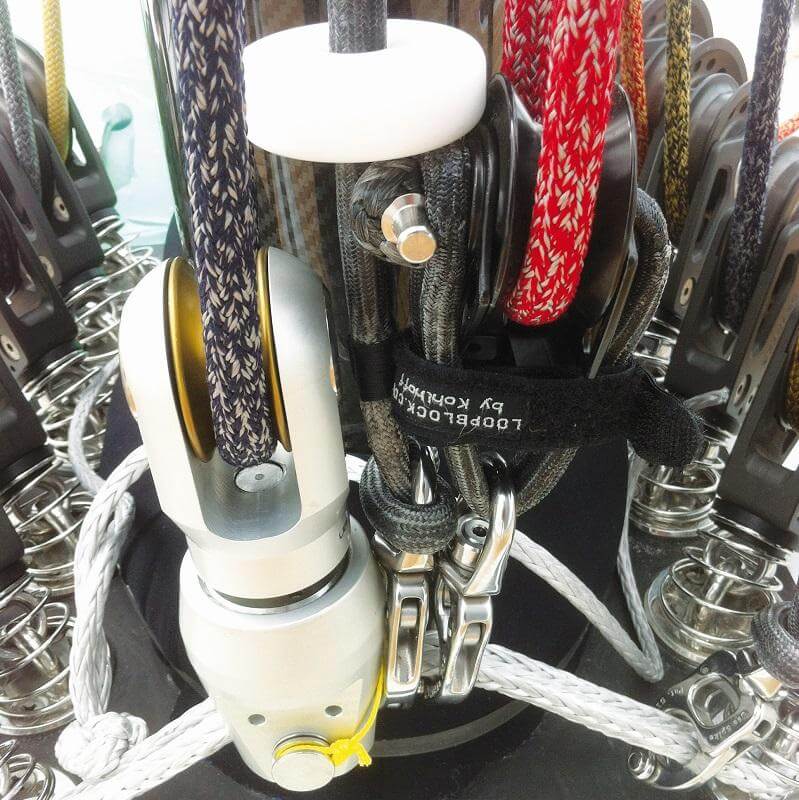

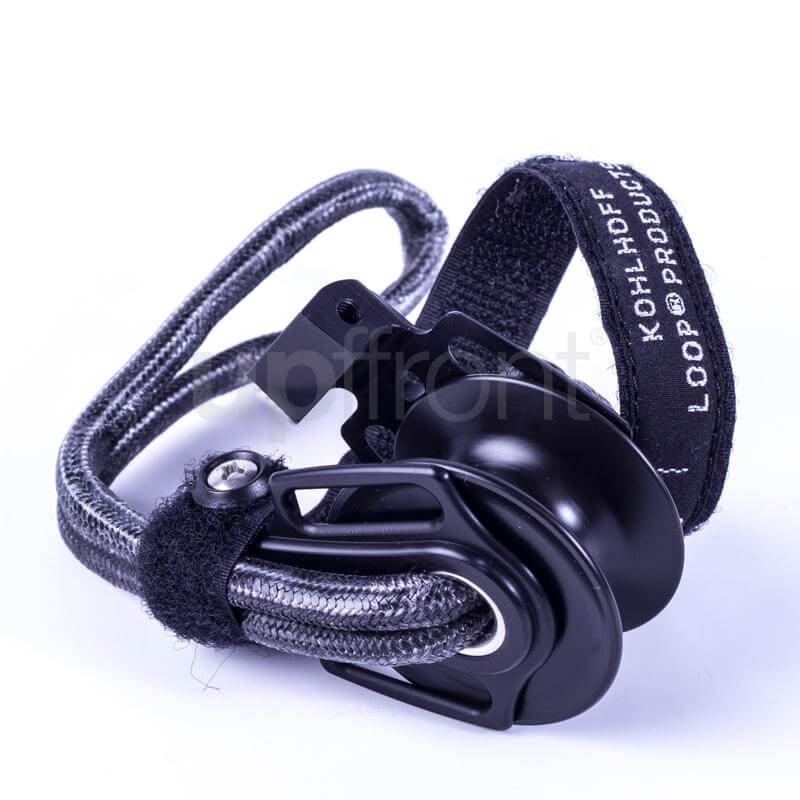

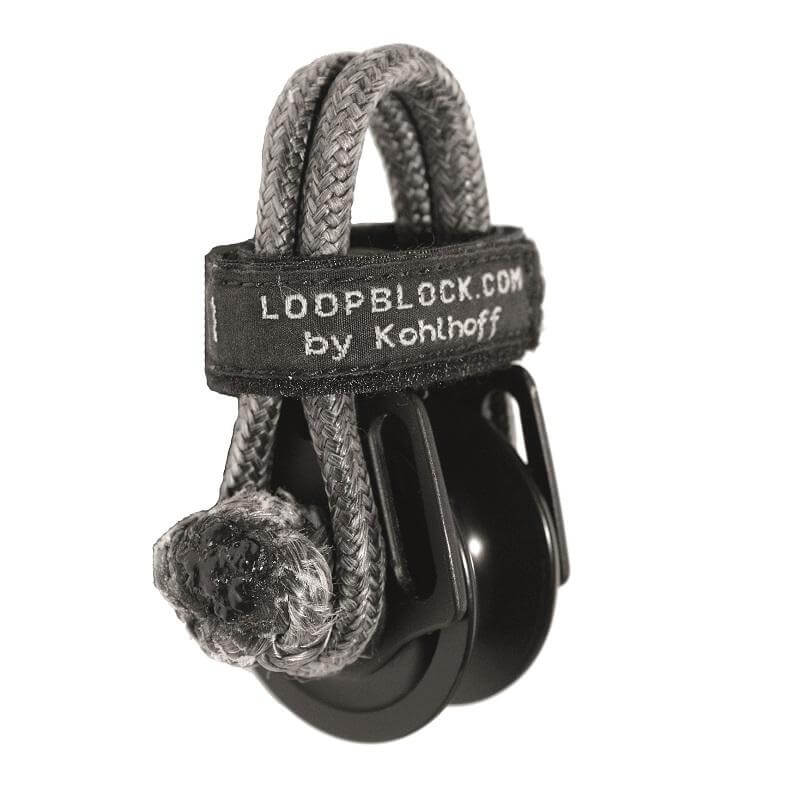

KOHLHOFF LOOP® Blocks are compact and lightweight multi-purpose snatch blocks with a Dyneema® loop fastening and acetal sheave. The short standard loop ensures minimum damage to deck or superstructure and is always remains easy to unfasten, even after full loading. The loop is covered with an extra Dyneema® braid to improve abrasion resistance, is terminated in a diamond knot and a velcro strap for security
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 40 |
| Recommended Boat size - Min (ft) | 30 |
| Load | |
|---|---|
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Blocks | |
|---|---|
| Bearing type | - |
| Ratchet | No |
| Dimensions | |
|---|---|
| Sheave Ø (mm) | 45 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 88 |
