Specifications for LOOP Products Bush 10 - Black
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 8 |
| Boat | |
| Blocks | |

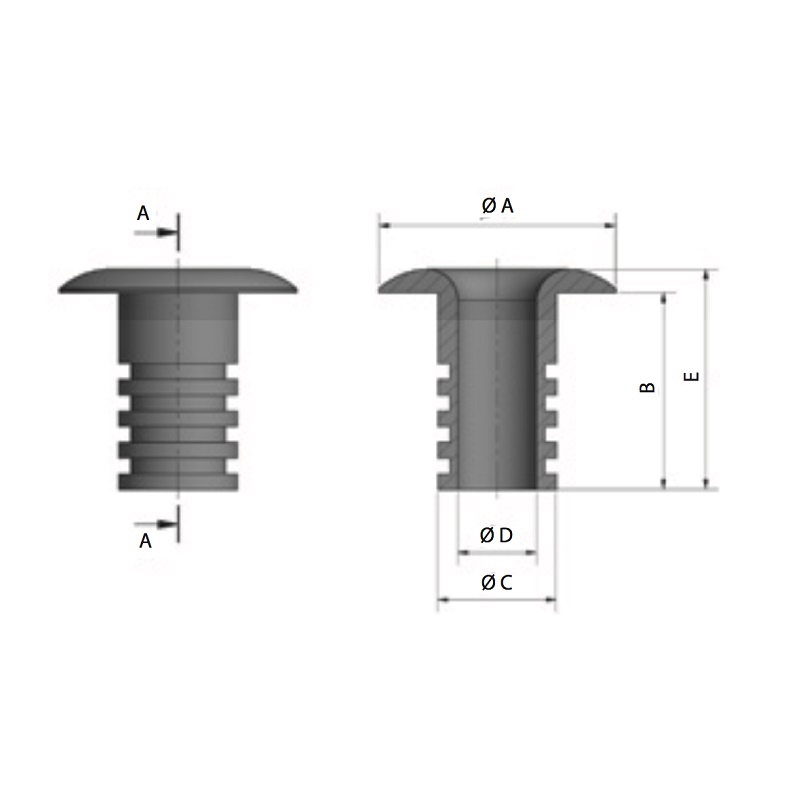

| Dimensions | |
| A (mm) | 30 |
| B (mm) | 25 |
| C (mm) | 15 |
| D (mm) | 10 |
| E (mm) | 28 |
| Inside Ø (mm) | 10 |
| Lower Ø (mm) | 15 |
| Upper Ø (mm) | 30 |
| Undefined | |
| Deck thickness Max (mm) | 25 |
| Weight | |
| Weight (g) | 9 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

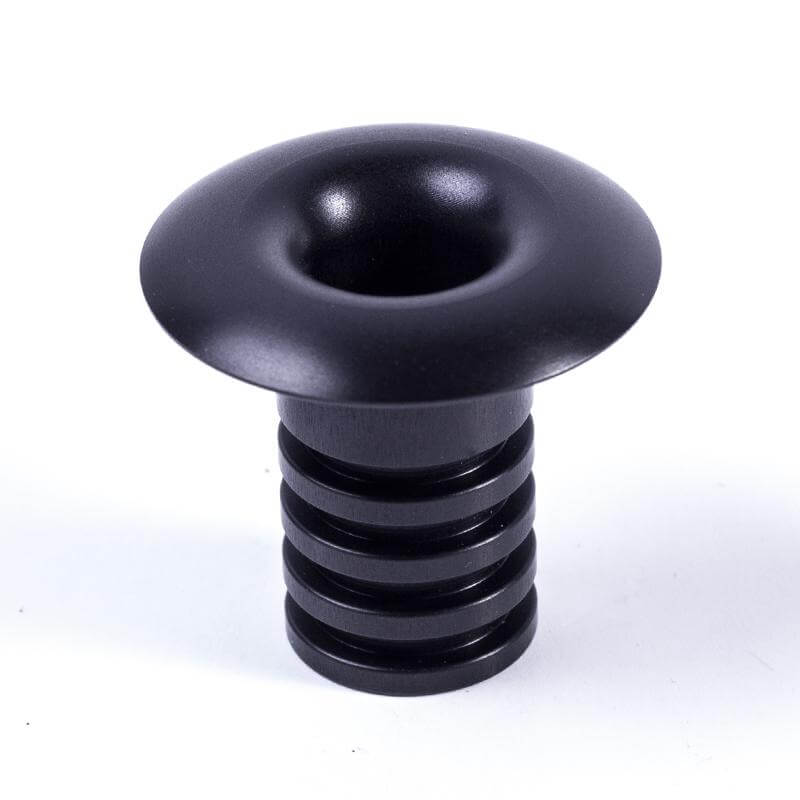

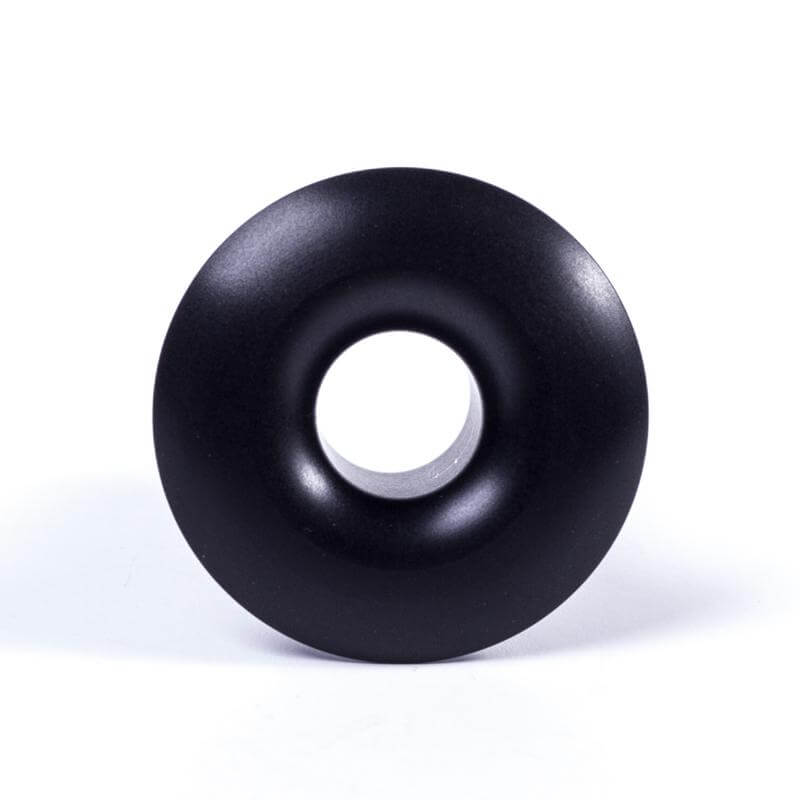

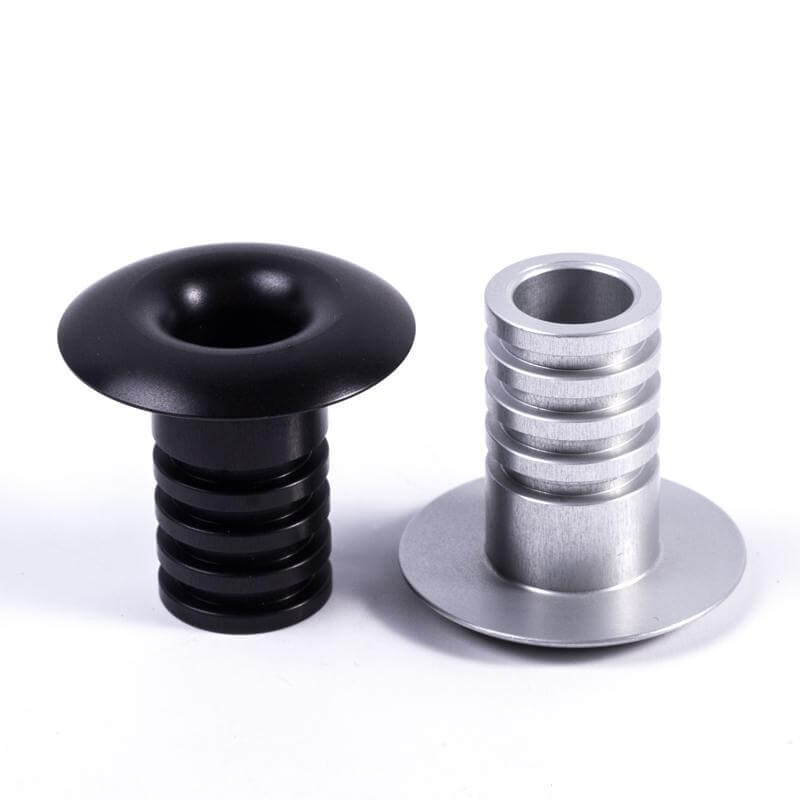

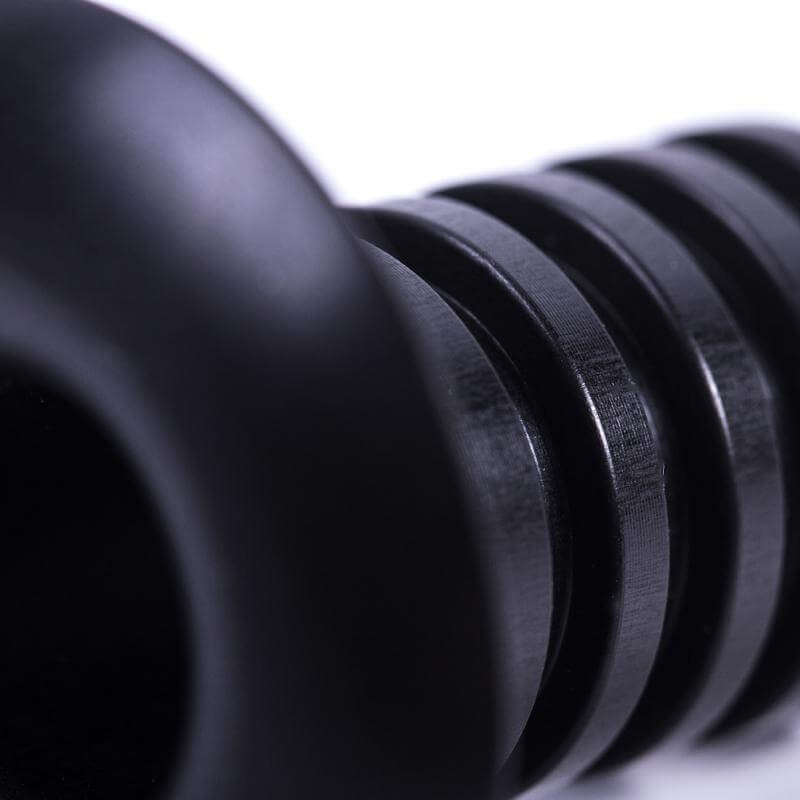

KOHLHOFF LOOP® Bushes are simple, stylish and functional through deck fairleads. Made of aluminium with a 10mm internal diameter they can easily be cut to the correct length. They have a wide range of uses, for example, they can be used for control lines on sportsboats or glued into carbon booms for lazy jacks etc. and are available in black and silver
