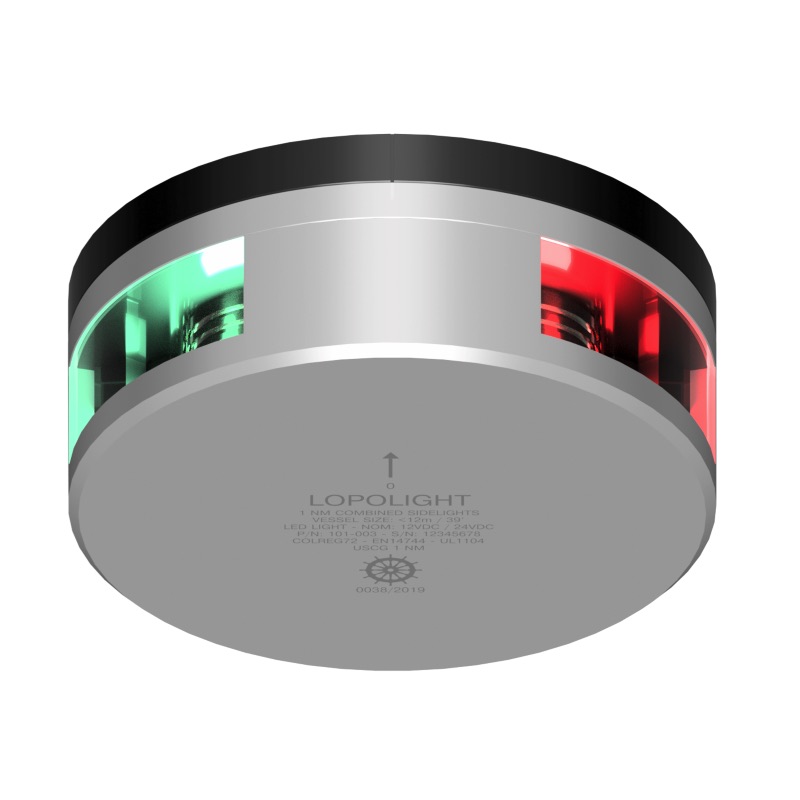

Lopolight 1NM Combined Sidelight – Horizontal Mount (Upside-Down), 2.5m Cable – Silver Anodised
[Port & Starboard – For vessels under 12m]
The Lopolight 1NM Combined Sidelight – Upside-Down Mount is designed specifically for installations beneath horizontal surfaces, such as under pulpits, toerails, or deck overhangs. Combining port (red) and starboard (green) sectors into a single compact unit, it provides a space-saving and compliant navigation solution for vessels under 12 metres.
This model is precision-machined from silver anodised aluminium and features a reversed flat-base design, optimised for downward-facing mounting. It emits two sharp 112.5° beams, visible to 1 nautical mile, and fully compliant with COLREG72 requirements for navigation lights.
The internal electronics are epoxy-sealed and rated IP68, protecting against water ingress, vibration, and UV degradation. A 2.5 metre marine-grade cable is pre-fitted to simplify installation.
Key Features:
-
Suitable for vessels under 12 metres
-
Combined port and starboard sidelights (112.5° per side, visible to 1NM)
-
Reversed horizontal mount for installations beneath structures
-
Durable silver anodised aluminium housing
-
IP68 sealed with epoxy bonding for harsh marine environments
-
Supplied with 2.5m marine-grade cable
-
Low power draw – ~2 W total at 10–32 V
-
Fully compliant with COLREG72, EN14744, and USCG standards
