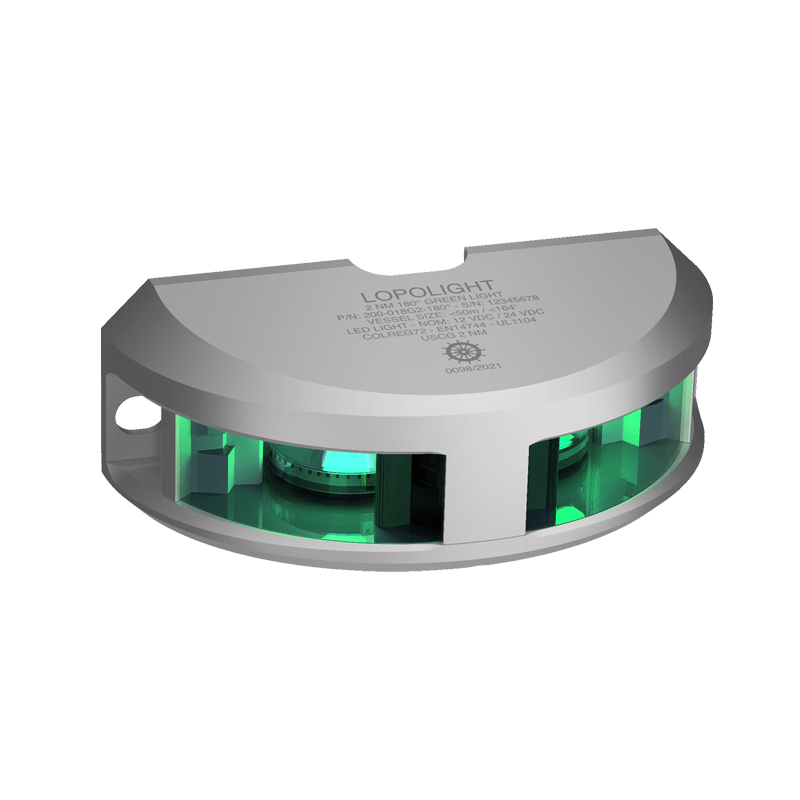

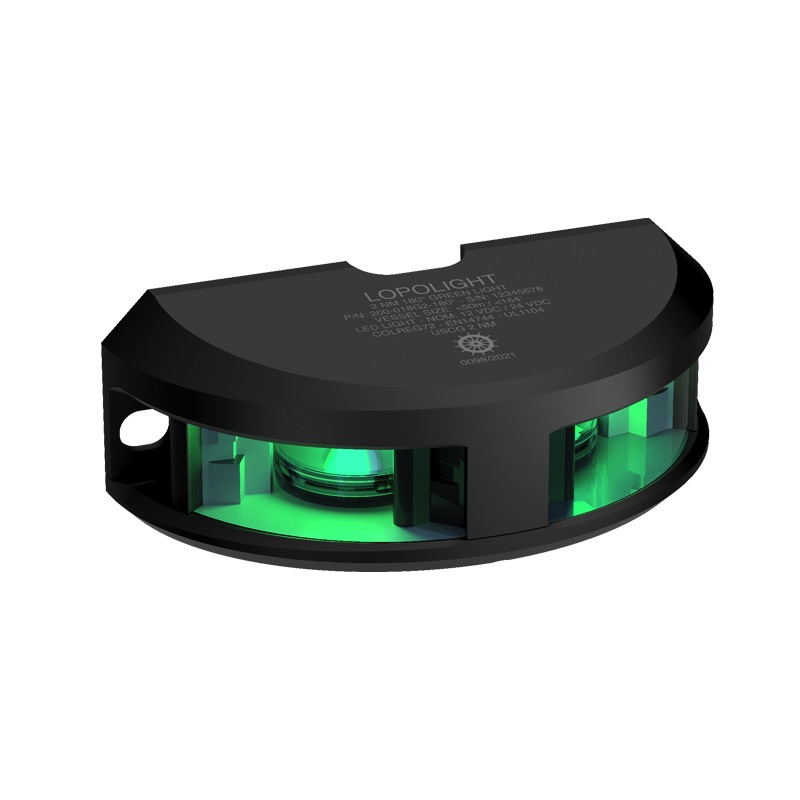

Lopolight 2NM 180° Green Light – 0.75m Cable (Silver or Black Anodised)


[Sector light – For vessels under 20m or specialist applications]

The Lopolight 2NM 180° Green Light is a precision-engineered LED sector light designed for vessels under 20 metres or for specialist navigation and signalling roles. It projects a sharp 180° green beam visible to 2 nautical miles, ensuring reliable compliance with international standards in compact form.

Built from anodised aluminium and available in Silver or Black finishes, the housing is both corrosion-resistant and rugged. Rated IP68, the epoxy-filled electronics are sealed against saltwater, UV exposure, and vibration.

The fixture is supplied with a 0.75-metre marine-grade cable, providing a neat and straightforward connection for shorter installations.

Key Features
  • Suitable for vessels under 20 metres or signalling applications
  • Emits a 180° green beam, visible to 2NM
  • Horizontal mount – compact and durable for exposed positions
  • Available in Silver or Black anodised aluminium housing
  • IP68 sealed with epoxy-filled electronics for marine durability
  • Supplied with 0.75m marine-grade cable
  • Low power draw – efficient LED output at 10–32 V
  • Fully compliant with COLREG72 and international standards
  • Alternative versions available with 6m or 20m cable (Silver or Black anodised)

Specifications

Electrics
Operating voltage (V) 10-32
Power supply type dc.
Current draw (mA @ 12VDC) 145
Current draw (mA @ 24VDC) 60
Power (W) 1.5
Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Luminous Intensity (cd) >5.4
Operating temperature -25°C to 55°C
Visibility (NM) 2
Water resistance IP68
Boat
Boat size (m) Under 12M or 12-20M or 20-50M
Rigging
Feed wire gauge Min 0.5mm2 AWG22
Material
Material Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane or Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Undefined
Colour* Black or Silver
Compatibility
Connection 0.75m cable
Weight
Weight (g) 340
