Spinlock TSR20 – 7 Sheave Organiser (Standard and Low Profile)

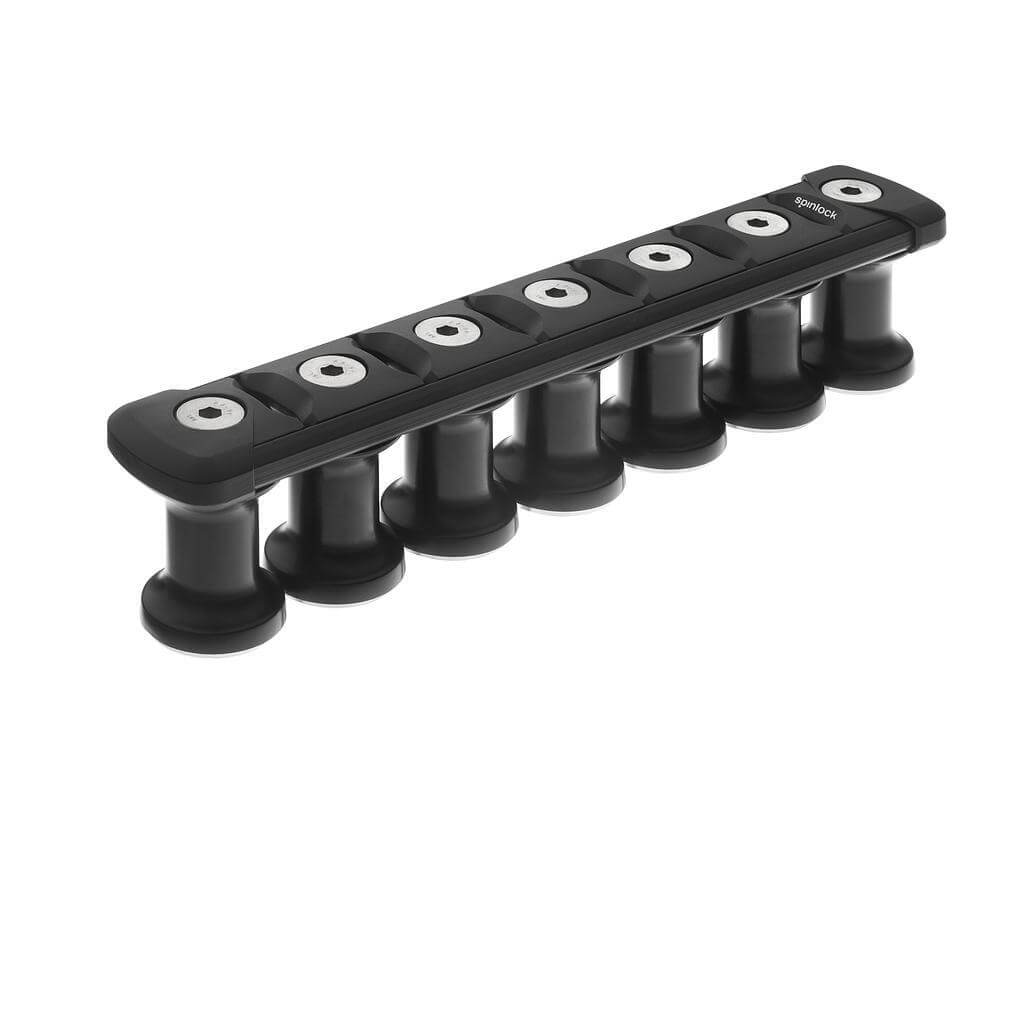

The Spinlock TSR20 7 Sheave Organiser provides extensive capacity for diverting multiple high-load lines aft with reliable control and low friction. Designed around 20 mm alloy sheaves on plain bearings, it delivers strong, predictable performance for advanced rope layouts.

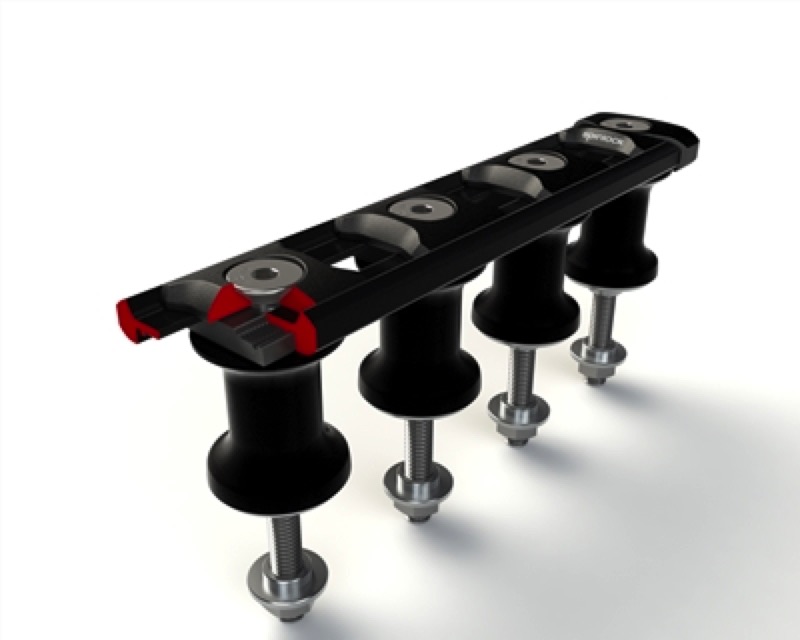

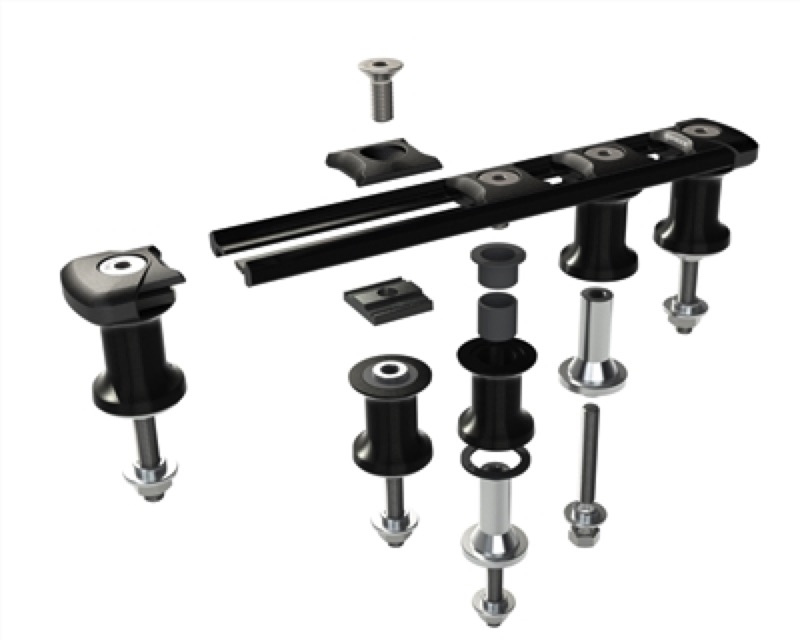

The modular assembly allows each sheave to be moved to any spacing along the alloy top rail, supporting custom line separation for dense configurations. The low-profile option facilitates installation in height-restricted areas, while fixed sheave inserts can be added to increase deflection load capability.
Key Features
• Seven 20 mm alloy sheaves
• High-load aft organiser for clutch/jammer outputs
• Modular spacing with alloy top rail
• Tulip-shaped sheaves reduce vertical deflection friction
• Standard and Low Profile versions
• Optional fixed sheave inserts

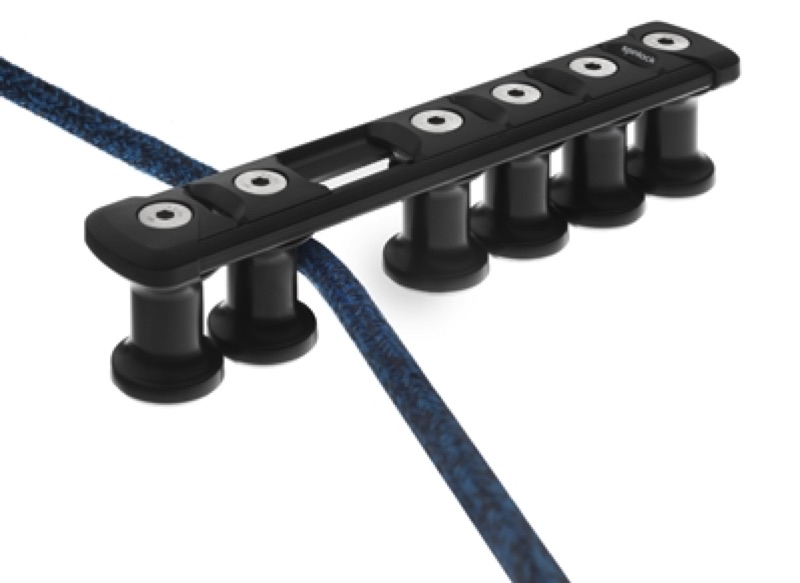

• Endless line compatibility
• Titanium upgrades available
• Custom spacing and mixed sheave diameters on request
Load Ratings – TSR20
• Individual sheave: 1500 kg
• Combined load: 750 kg × number of sheaves
• 30° deflection: 3000 kg
• 60° deflection: 1500 kg

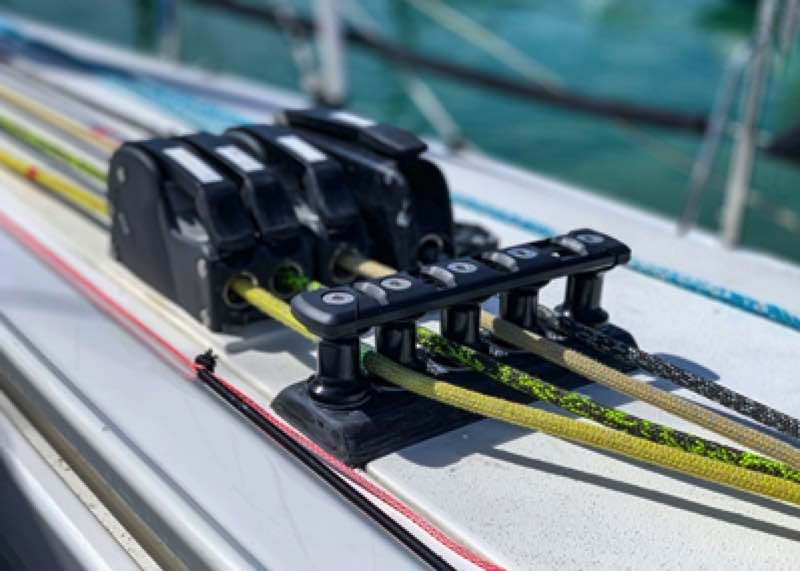

Applications on Sailing Yachts
• Multi-line halyard and control systems on performance cruisers
• Mast-base routing for dense exit packages
• Space-limited areas requiring low-profile hardware
• Custom line spacing for improved ergonomics and fairness
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 13 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1500 |
| NBL (kg) | 3000 |
| Blocks | |
|---|---|
| Sheave material | Alloy |
| Sideplate material | Alloy |
| Dimensions | |
|---|---|
| Fixing hole spacing (mm) | 34 |
| Sheave Ø (mm) | 21 |
| Total height (mm) | 52 |
| Total length (mm) | 244 |
| Total width (mm) | 41 |
| Compatibility | |
|---|---|
| Option* | Standard or Low Profile |
| Mounting fasteners | M8 CSK Head (supplied) |
| Weight | |
|---|---|
| Weight (g) | 1115 |
