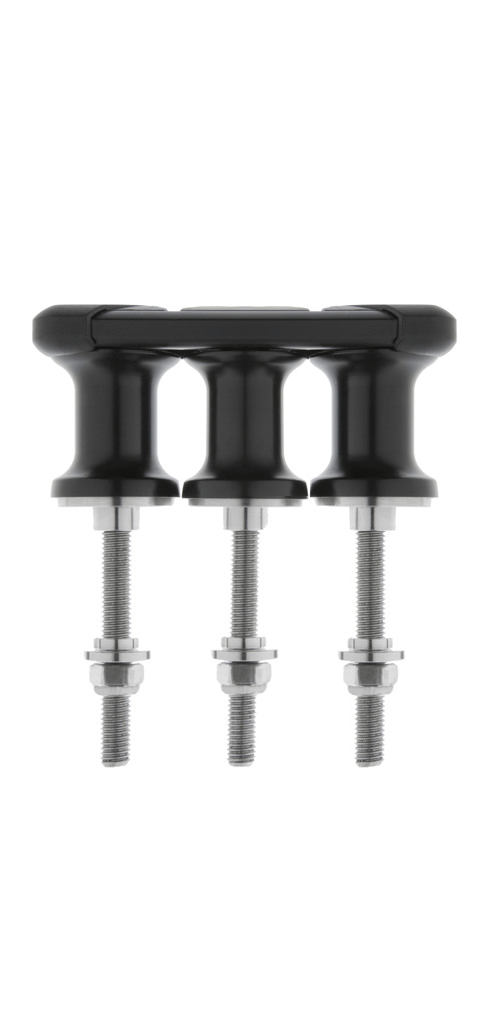

Spinlock TSR30 – 3 Sheave Organiser (Standard and Low Profile)
The Spinlock TSR30 3 Sheave Organiser is a heavy-duty aft organiser designed for diverting multiple high-load lines from clutches and jammers with maximum control and low friction. Using robust 30 mm alloy sheaves on plain bearings, the TSR30 delivers predictable high-load performance for applications where larger rope diameters, significant deflection angles, or elevated working loads are involved.

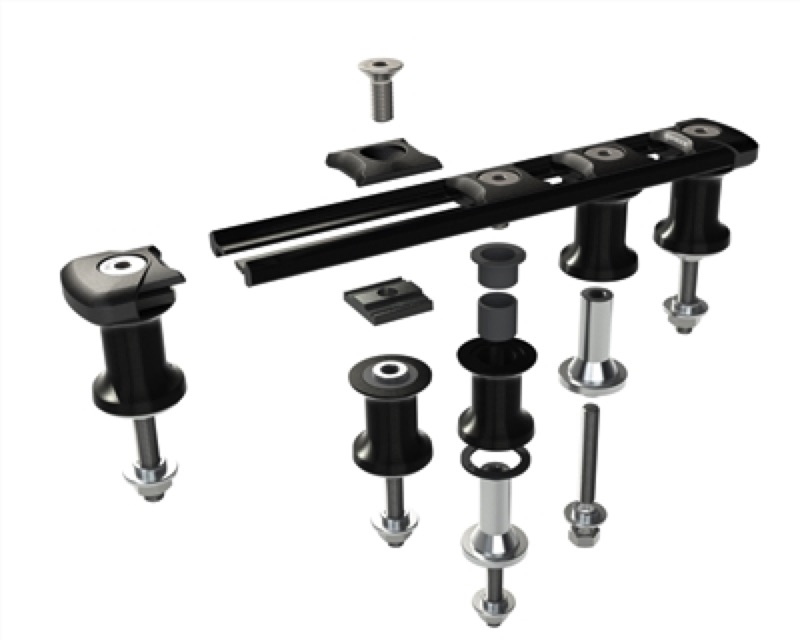

The modular alloy top rail allows each sheave to be repositioned to achieve custom spacing, supporting dense line layouts on larger performance yachts. The tulip-shaped sheave profile reduces friction during vertical deflection, while optional fixed sheave inserts increase permissible deflection loads. The TSR30L low-profile version suits installations with restricted height such as mast bases and in-deck tunnels.
Key Features
• Three 30 mm alloy rotating sheaves for high-load applications

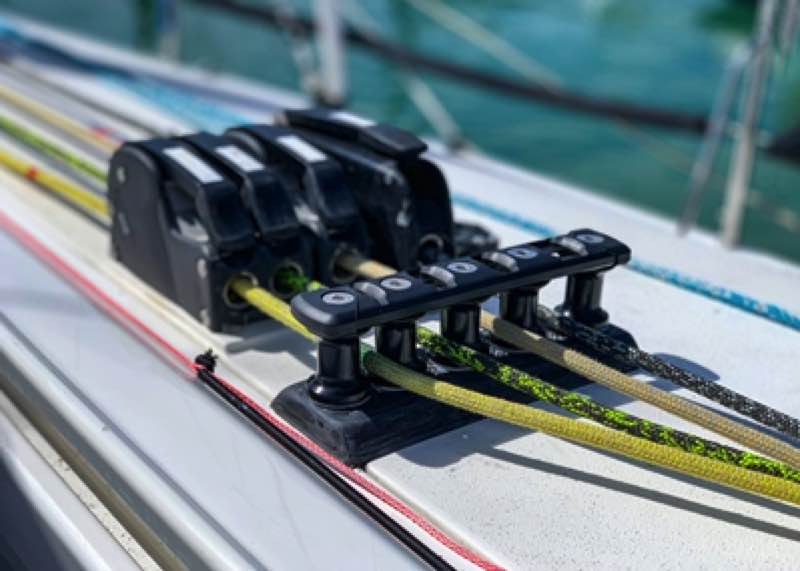

• Purpose-designed aft organiser for diverting lines from clutches and jammers

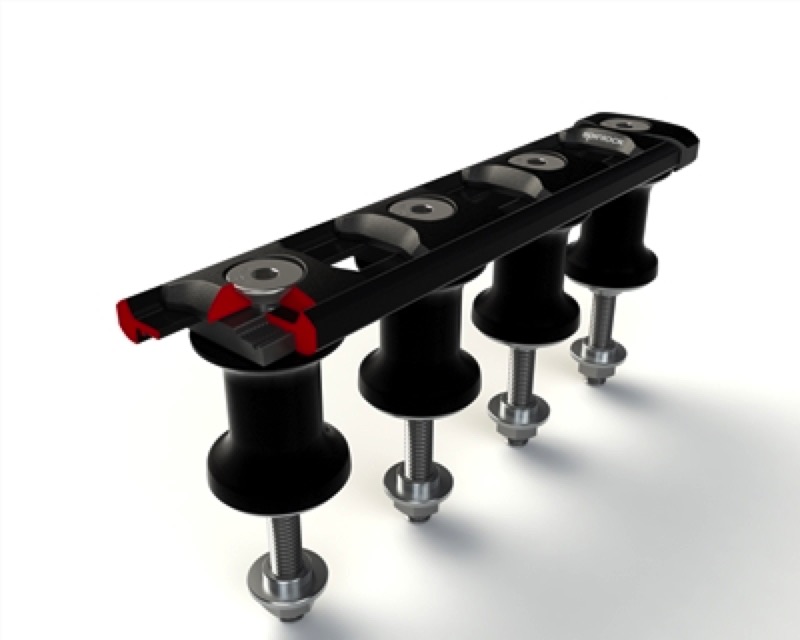

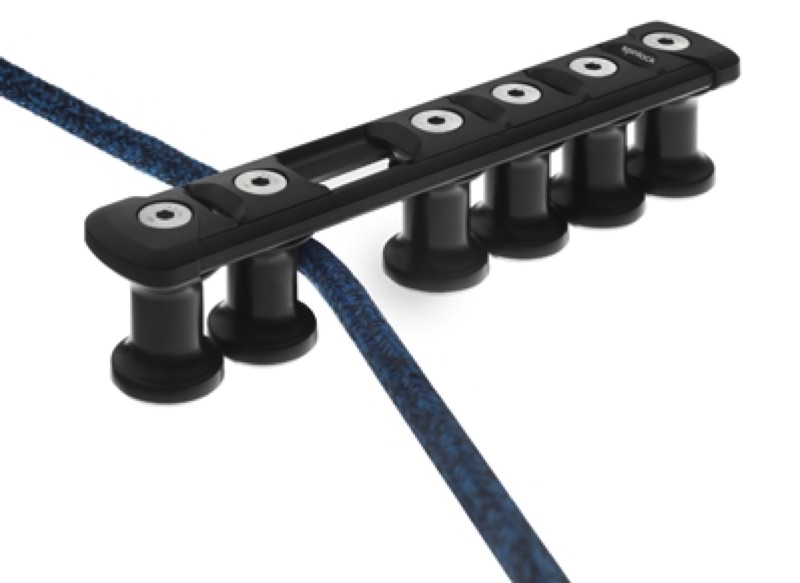

• Modular spacing using alloy top rail
• Tulip-shaped sheaves reduce vertical deflection friction
• Fixed sheave inserts available to increase deflection load capacity
• Standard and Low Profile versions
• Suitable for endless line routing
• Titanium components available
• Custom spacing and mixed sheave diameters on request
Load Ratings – TSR30
• Individual sheave load: 2500 kg
• Combined load: 1250 kg × number of sheaves
• 30° deflection: 5000 kg
• 60° deflection: 2500 kg
Applications on Sailing Yachts
• Diverting high-load halyards, reefing lines, and tack lines
• Clutch-to-winch routing for large diameter or heavily loaded lines
• Mast-base and tunnel installations requiring low-profile hardware
• Larger yachts needing configurable line spacing and high deflection capability
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 15 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 2500 |
| NBL (kg) | 5000 |
| Blocks | |
|---|---|
| Sheave material | Alloy |
| Sideplate material | Alloy |
| Dimensions | |
|---|---|
| Fixing hole spacing (mm) | 44 |
| Sheave Ø (mm) | 29 |
| Total height (mm) | 52 |
| Total length (mm) | 128 |
| Total width (mm) | 41 |
| Compatibility | |
|---|---|
| Option* | Standard or Low Profile |
| Mounting fasteners | M10 CSK Head (supplied) |
| Weight | |
|---|---|
| Weight (g) | 766 |
