SPINLOCK | XTS Clutch | Servicing
|

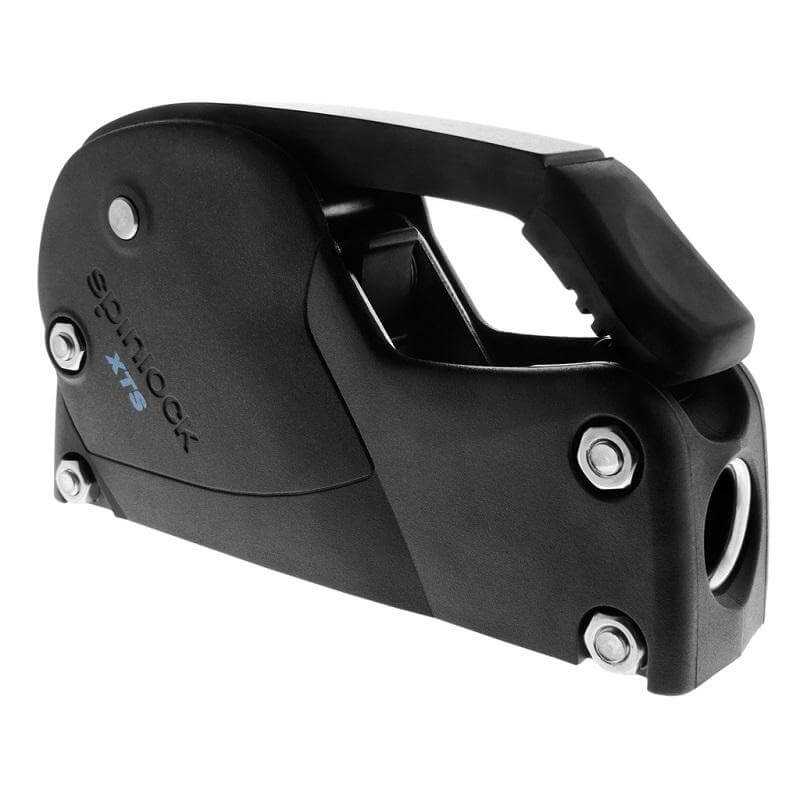

Spinlock's XTS Clutch is a multi-role clutch with reliable all round performance on smaller diameter lines. The XTS0610-1 gives optimised clutching and holding power on 6-10mm lines for mid to high load operation. Features include extruded alloy handle with soft end grip, secure handle locking in open and closed position and easy access to fasteners. The XTS0610 single clutches can be converted to side-mountable using the XTS-SMNT side mounting kit, and ceramic coated Cam and Base are available for consistent holding & performance on modern lines. The clutch has replaceable parts, iis easy to maintain and is supplied with handle labels. Installation requires 2 x M8 CSK fasteners (not supplied).
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 700 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| Line entry height (mm) | 22 |
| Total height (mm) | 85 |
| Total length (mm) | 156 |
| Total width (mm) | 38 |
| Undefined | |
|---|---|
| Colour* | Black |
| Compatibility | |
|---|---|
| Mounting fasteners | 2 x M8 CSK Head (not supplied) |
| Weight | |
|---|---|
| Weight (g) | 545 |
| Warranty (yrs) | 5 |
