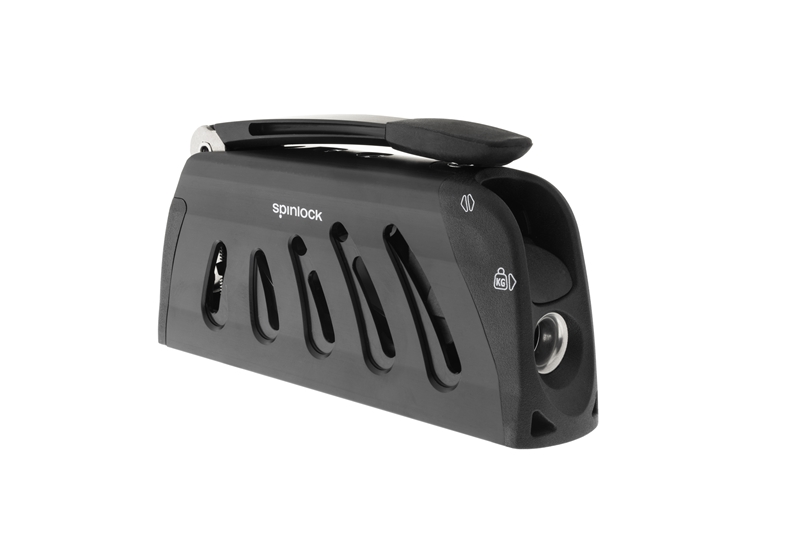

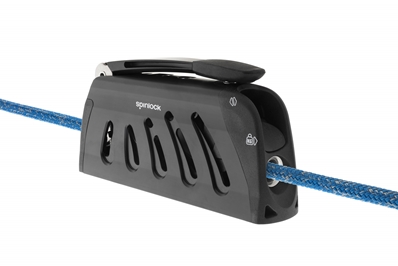

Spinlock XXC Powerclutch - Black
XXC Range Summary:
- Holds up to 2350kg working load, 30% higher than the standard XX0812, yet still provides controlled release under load
- XXC0812 delivers a 50% increase in power: weight, yet is 15% lighter
- Lightened handle and body; locally reinforced with unidirectional carbon fibre and with critical components in Titanium*
- Ceramic coated jaws hold hybrid covered lines at loads up to 2350kg and help resist heat generated at higher line speeds for extended jaw life
- Optimised for high performance 8-12mm (5/16-1/2”) line diameters
- Internal Torlon roller bearings ensure lasting performance and durability under high loads
- Easy on-deck access for removing complete internal assembly even when banked together
- Access ports for fresh water flushing
- Black, silver and amber versions available
Lock Open - XXC0812/L
Allows line to run freely in or out with the handle closed
Ideal for applications such as spinnaker sheets and mainsheet when locking is rarely needed
Lifting the rear switch instantly applies clutching mode
Side Mount
Side mounting is the neatest solution for spars, side decks and coamings. Handed port or starboard; use bolted version for conventional installation, or bonded version for building directly into deck or rig to save installation weight
NB: XXC is available with 17-4PH stainless steel parts for teams competing in classes where Titanium is prohibited
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
|---|---|
| Type | Single |
| Load | |
|---|---|
| SWL (kg) | 2300 |
| NBL (kg) | 4600 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| Total height (mm) | 97 |
| Total length (mm) | 195 |
| Total width (mm) | 42 |
| Undefined | |
|---|---|
| Colour* | Black |
| Compatibility | |
|---|---|
| Mounting fasteners | 2 x M8 Titanium Hex Head (Supplied) |
| Weight | |
|---|---|
| Weight (g) | 860 |
