Specifications for UBI Maior Halyard Block for 2:1 - SWL 3.5T
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Boat | |
| Load | |
| SWL (kg) | 3500 |
| NBL (kg) | 7000 |
| Dimensions | |
| A (mm) | 22 |
| B (mm) | 48 |
| Pin Ø (mm) | 12 |
| Sheave Ø (mm) | 46 |
| Material | |
| Material | Aluminium |
| Material Grade | 6082-T6 |
| Weight | |
| Weight (g) | 275 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

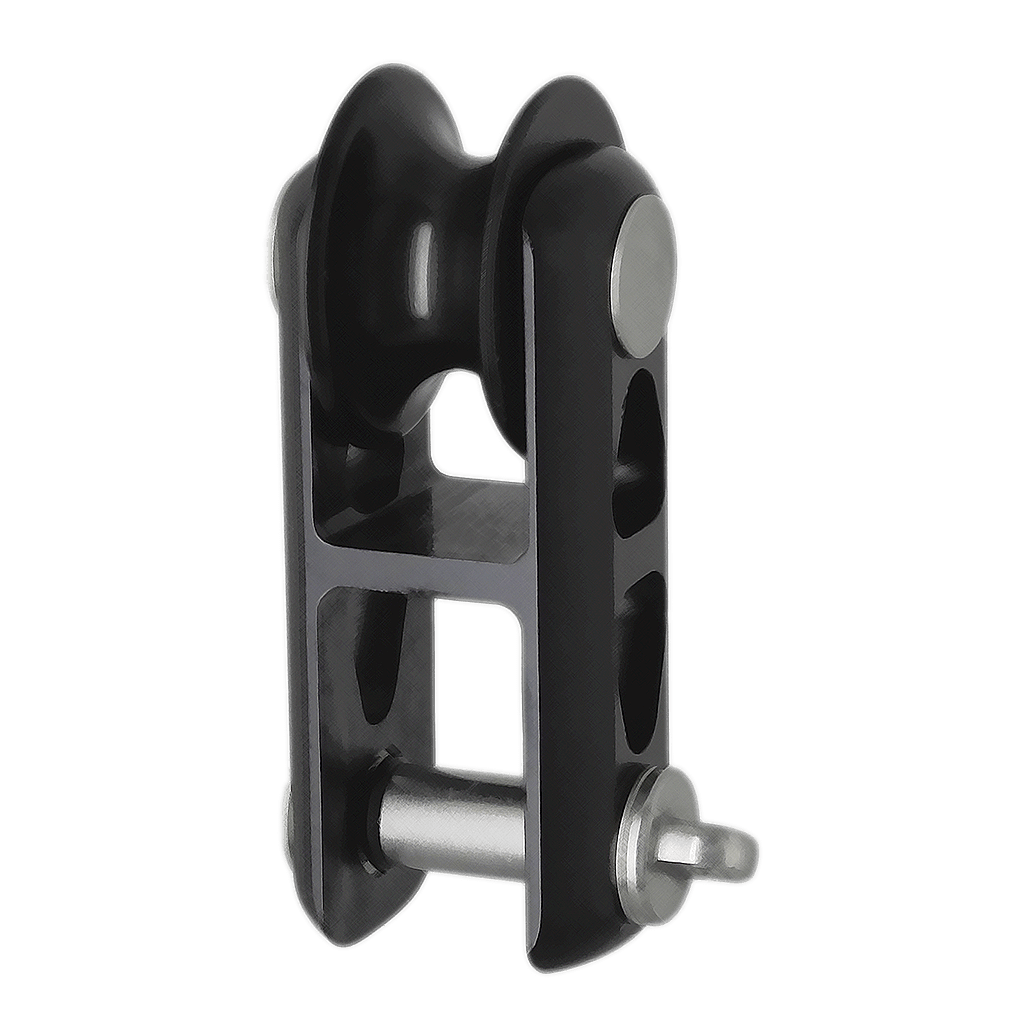

These Halyard blocks from Uni Maior act as a 2:1 purchase system on the halyard, halving the load of the hoist. The main body is built in aluminium (grade: 6082T6) with a stainless steel pin.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 3500 |
| NBL (kg) | 7000 |
| Dimensions | |
|---|---|
| A (mm) | 22 |
| B (mm) | 48 |
| Pin Ø (mm) | 12 |
| Sheave Ø (mm) | 46 |
| Material | |
|---|---|
| Material | Aluminium |
| Material Grade | 6082-T6 |
| Weight | |
|---|---|
| Weight (g) | 275 |
