Specifications for Wichard Captive pin D shackle - Dia 10 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 1520 |
| NBL (kg) | 5200 |
| Dimensions | |
| A (mm) | 33 |
| B (mm) | 20 |
| C (mm) | 11 |
| D (mm) | 21 |
| E (mm) | 9 |
| F (mm) | 58 |
| G (mm) | 53 |
| Pin Ø (mm) | 11 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Weight | |
| Weight (g) | 114 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

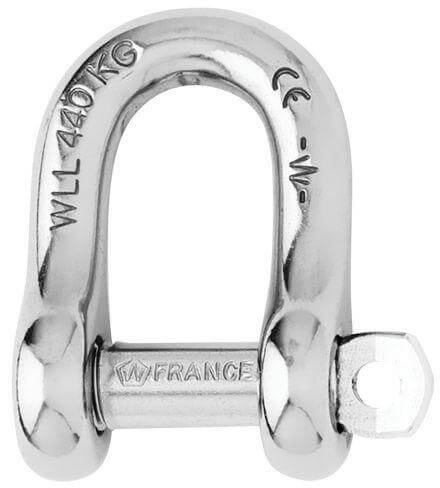

Captive pin "D" shackle forged in grade 316L stainless steel
The pin is connected to the body at all times even when opened
The pin is locked into one of the indentations
No risks of loose due to vibrations
Outstanding working and breaking loads
Applications
Standard applications of shackle
Attachment applications: blocks, head …
