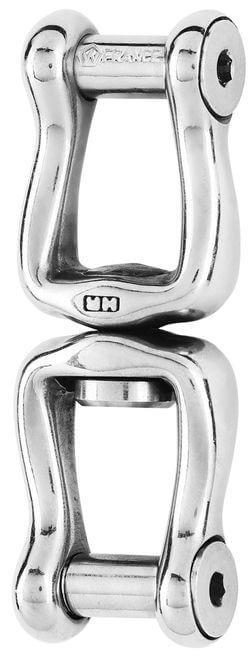

Specifications for Wichard Swivel - Double Fork - Pin with allen head - Length: 80 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 1440 |
| NBL (kg) | 2800 |

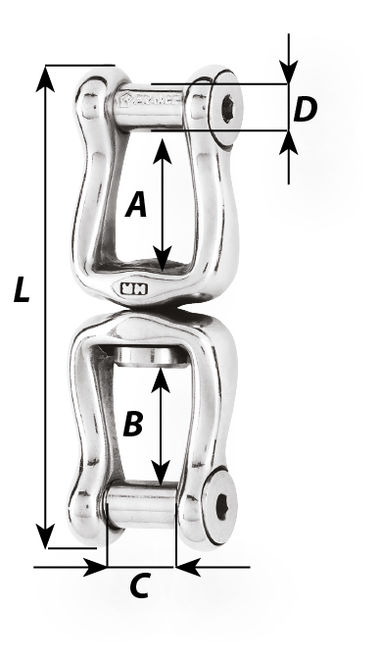

| Dimensions | |
| A (mm) | 20 |
| B (mm) | 17 |
| C (mm) | 11 |
| Pin Ø (mm) | 11 |
| Total length (mm) | 80 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Weight (g) | 99 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) with two openings
Low clutter (allen head pin)
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
Do not use for mooring applications
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1440 |
| NBL (kg) | 2800 |
| Dimensions | |
|---|---|
| A (mm) | 20 |
| B (mm) | 17 |
| C (mm) | 11 |
| Pin Ø (mm) | 11 |
| Total length (mm) | 80 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
|---|---|
| Weight (g) | 99 |
