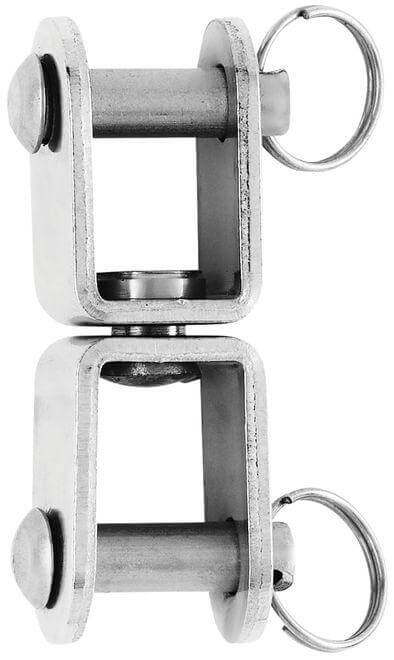

Specifications for Wichard Swivel - Fork / Fork - Cambered plate - Length: 45 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 480 |
| NBL (kg) | 1000 |
| Dimensions | |
| A (mm) | 9 |
| B (mm) | 10 |
| C (mm) | 10 |
| D (mm) | 10 |
| Pin Ø (mm) | 10 |
| Total length (mm) | 45 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Weight | |
| Weight (g) | 26 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Fork-Fork swivel (not forged)
Cost savings
Applications
For dinghies
Low load applications (tiller extensions…)
Do not use for mooring applications
