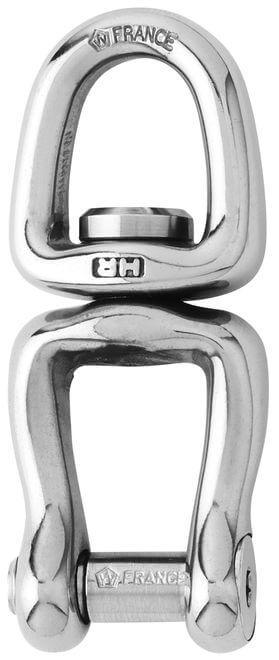

Specifications for Wichard Swivel - Pin with allen head - Length: 105 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 3200 |
| NBL (kg) | 5500 |

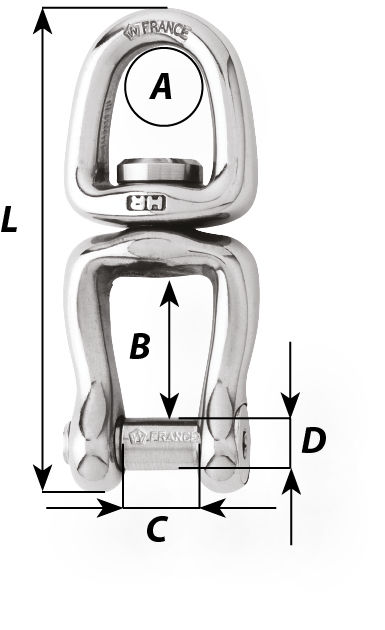

| Dimensions | |
| A (mm) | 19 |
| B (mm) | 31 |
| C (mm) | 18 |
| Pin Ø (mm) | 18 |
| Total length (mm) | 105 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Weight (g) | 265 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) with only one opening and one eye
Low clutter (pin with allen head)
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
For applications requiring an easier rotation
Do not use for mooring applications
