Specifications for Wichard Thimble Shackle - Ø8mm captive pin
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Boat | |
| Load | |
| SWL (kg) | 1000 |
| NBL (kg) | 3000 |
| Dimensions | |
| A (mm) | 41 |
| B (mm) | 16 |
| C (mm) | 8 |
| D (mm) | 16 |
| E (mm) | 7 |
| F (mm) | 76 |
| G (mm) | 42 |
| Pin Ø (mm) | 8 |
| Material | |
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Weight | |
| Weight (g) | 78 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

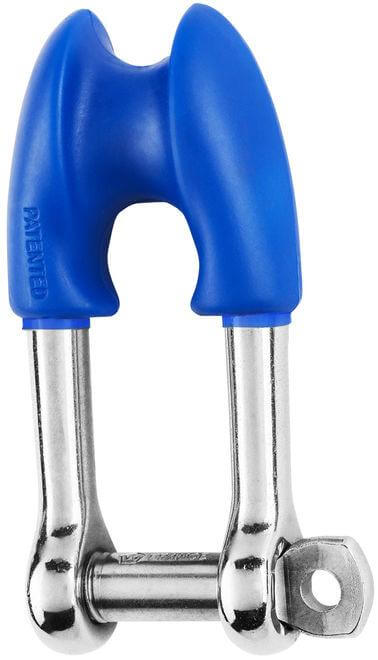

Wichard's thimble shackle with captive pin combines a shackle with a thimble. The patented thimble cover allows lines to be spliced directly onto shackle, without the need for a separate thimble. The captive pin is a typical shackle pin.
This range of shackles is producted with 316L grade stainless steel, a metal favoured for it's high corrosion resistance in marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| NBL (kg) | 3000 |
| Dimensions | |
|---|---|
| A (mm) | 41 |
| B (mm) | 16 |
| C (mm) | 8 |
| D (mm) | 16 |
| E (mm) | 7 |
| F (mm) | 76 |
| G (mm) | 42 |
| Pin Ø (mm) | 8 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Material Grade | AISI 316L |
| Weight | |
|---|---|
| Weight (g) | 78 |
